Flame Treatment Unit FLG series

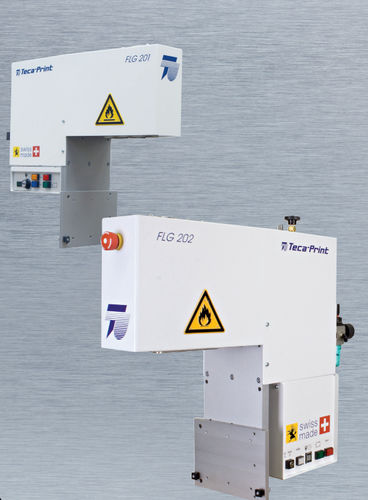

The flame treatment units FLG 201 and FLG 202work with a gas flame and are used in pad printing for the pretreatment of certain plastics (PE,PP) as well as for posttreatment. In many casesprinting is only possible if the surface was treated.With both units the flame treatment takes placewhen the workpiece passes under the gas flame.They are suitable for various applications and can be mounted to linear conveyor belts, rotary indexing tables or to a transfert carré.The flame width can be either 125 mm or 200mm. FLG 201 The flame treatment takes place during a defined length of time following an impulse signal or during an active signal. FLG 202 The CE-conform flame treatment unit FLG 202 has a programmable safety control, emergency stop switch and monitoring of compressed air and gas. The duration of the flame treatment is adjustable via a user-friendly switch. Alternatively the flame duration can be determined by an external signal.
