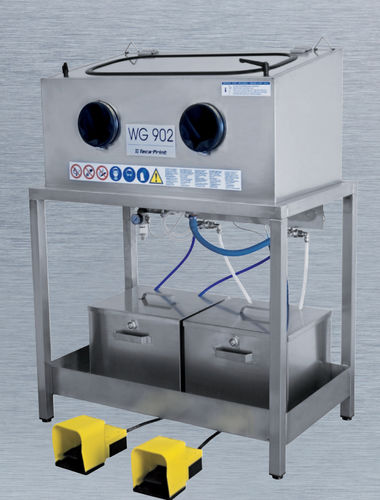

Aspiration cleaning equipement WG 902

brushmanualprocess

In the WG 902, made of stainless sheet steel,printing accessories dirtied with ink can be cleaned. The equipment enables a time and costsaving process without direct contact to solvents. The access to the hermetically sealedspace, that can be viewed through the mineralglass plate in the cover, takes place throughthe solvent resistant gloves. The cleaning isdone manually by using a brush into which solvent is pumped.The WG 902 has two separate containers forsolvent. Whereas the solvent in the first container is used for basic cleaning, the fluid in thesecond container can be used for rinsing. Thecleaning solvent can therefore be used over alonger period of time and the environmental impact is reduced. The cleaning unit is providedwith extraction. PUMP DRIVE pneumatic, 5 - 6 bar COMPRESSED-AIR SUPPLY minimum 4 bar, maximum 10 bar AUTOMATIC EXTRACTION inclusive time delay valve to adjust exhaust time included WEIGHT 83 kg OVERALL DIMENSIONS w = 950 mm h = 1310 mm d = 590 mm DIMENSIONS CLEANING SPACE w = 870 mm h = 380 mm d = 450 mm Only cleaning liquids with a flash point above 21°C are permitted!
