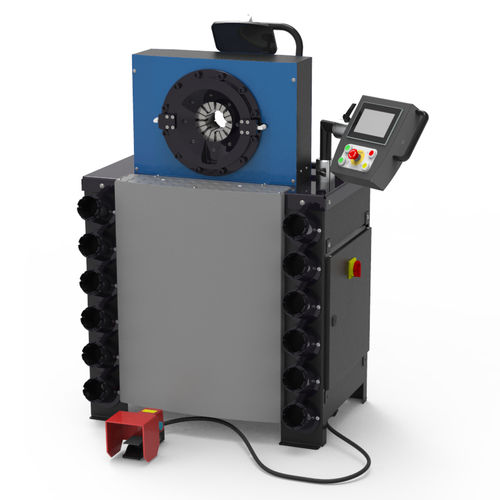

Connector crimping machine P CRIMP 200
for hoseshydraulic hosenut

connector crimping machine
connector crimping machine
connector crimping machine
Add to favorites
Compare this product


Characteristics

Product handled
connector, for hoses, hydraulic hose, nut, for elbow fittings, for composite insulators, for shock absorber
Operational mode
semi-automatic
Drive type
electro-hydraulic
Other characteristics
compact, high-capacity, large aperture, with crimping quality control (CQM)
Crimping force

2,000 kN

Crimping capacity

Min.: 4 mm
(0.2 in)

Max.: 70 mm
(2.8 in)

Power

5.5 kW
(7.48 hp)

Weight

600 kg
(1,322.77 lb)

Noise level

Max.: 55 dB

Description

The P CRIMP 200 is an assembly machine for mass production with SCS system. Crimping force up to 200 tonnes for hoses up to 1"-1/2 4WS and 2" Industrial. Large production capacity (small/medium bore) and low noise level (silent pump). Very precise and robust. Easy die set-up with ergonomic gun. Available with SCE control panel. Multiple voltages available.
