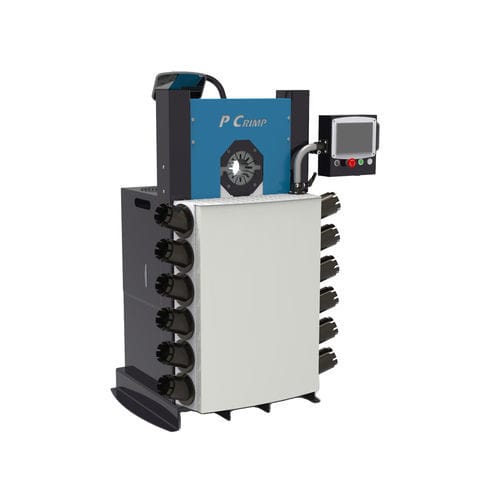

Hose crimping machine P CRIMP 140
nuthydraulic hosesemi-automatic

hose crimping machine
hose crimping machine
Add to favorites
Compare this product


Characteristics

Product handled
nut, for hoses, hydraulic hose
Operational mode
semi-automatic
Drive type
electro-hydraulic
Other characteristics
compact, high-capacity, large aperture, with crimping quality control (CQM)
Crimping force

1,400 kN

Crimping capacity

Min.: 4 mm
(0.2 in)

Max.: 70 mm
(2.8 in)

Power

4 kW
(5.44 hp)

Weight

675 kg
(1,488.12 lb)

Noise level

Max.: 69 dB

Description

This new stand type crimping machine is the ideal tool for hoses assembly up to 1’’ 1/4 4WS. Being ergonomically designed, equipped with a 4 kW motor and a SCS control panel, this production crimper allows a precise and efficient crimping process. It can be provided with a barcode reader to facilitate the user and assembly parts identification for a fast and secure process. CAPACITY: 4WS 1"1/4 max. CRIMP RANGE: 4 - 70 mm CRIMP FORCE: 140 t COMPLETE OPENING: 125 mm MOTOR: 4 kW
