Pocket filter

airdustfiberglass

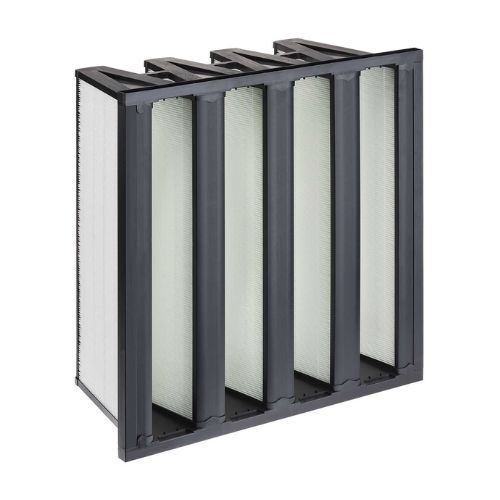

Compact multi-diagonal filters – rigid pockets EPA and HEPA Models E11, E12, H13, in multi-diagonal (V) configuration. Rigid compact air filters are designed to be used in air handling units or ventilation (HVAC), as well as in demanding environments such as pharmaceutical industries, data centers, clean rooms, laboratories and hospitals serving as final filters. Specifically engineered to operate in harsh conditions (variable air volumen high humidity, occasional water exposure), they meet the needs for optimal air quality. These filters are installed before activated carbon filters and offer a large filtering surface due to their rigid structure. The randomly arranged fiberglass filter media efficiently captures fine particles down to 0,3 µm. These filters can be installed both vertically and horizontally. Since 1992, Technicis Filtration has been a leading supplier and manufacturer of air filters for industrial spray booths, ventilation and dust collection. Features Standard Dimensions 287 x 592 x 292 mm 490 x 592 x 292 mm 590 x 592 x 292 mm 592 x 592 x 292 mm Flange 25 mm (or 20 mm upon request) Raw materials and treatments Plastic Frame High efficiency minipleat fiberglass filter Filtration Efficiency From M6 to H13 according to the model Classification according to the standard norme ISO 16890 Standard Classification according to the standard norme ISO 16890
