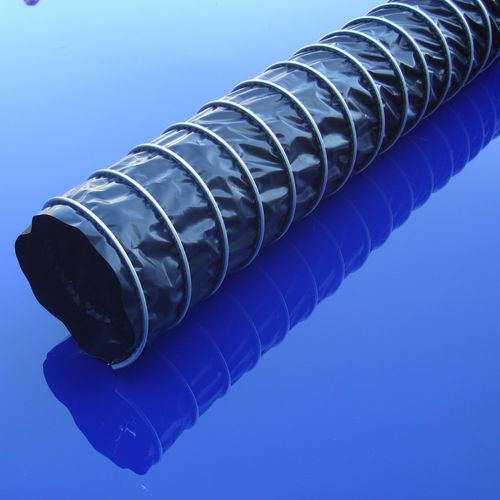

Paint hose TECHNI CONNECT 24 AS
for solventslow-pressurefor the chemical industry

Paint hose - TECHNI CONNECT 24 AS - TECHNIFLEX HOSE INDUSTRY - for solvents / low-pressure / for the chemical industry
Paint hose - TECHNI CONNECT 24 AS - TECHNIFLEX HOSE INDUSTRY - for solvents / low-pressure / for the chemical industry
Add to favorites
Compare this product

Characteristics

Use
for paint, for solvents
Applications
low-pressure, for the chemical industry, for the pharmaceutical industry, for the wood industry
Other characteristics
flexible, chemical-resistant, weather-resistant, heat-resistant, rugged, small bend radius, spiral wire
Inner diameter

Min.: 102 mm
(4.016 in)

Max.: 1,240 mm
(48.819 in)

Pressure

Min.: 0.007 bar
(0.102 psi)

Max.: 0.245 bar
(3.553 psi)

Temperature

Min.: -70 °C
(-94 °F)

Max.: 280 °C
(536 °F)

Description

Features : • Highly flexible • Excellent weather resistance • Construction is qualified for application in 94/9/EC-zone 0/20 • Hose wall with non stick surface • Surface resistivity Ro<106 Ohm • Small bend radius • Excellent chemical resistance • Heat and cold resistant • Extremely compressible ca. 1:6 • Outer hose wall of robust material • Optimum flow characteristics • External steel helix protects against abrasion Using Areas : • Paint mist extraction • Pharmaceutical industry • Endangered areas, where electrical conductivity acc. To ATEXis required • Low pressure application • Extraction of solvents • Extrction and conveyance of aggressive media, explosive gases and • Chemical plants • Paint, wood and paper industries
