UV exposure unit max. 160 x 190 cm

UV exposure unit
UV exposure unit
Add to favorites
Compare this product

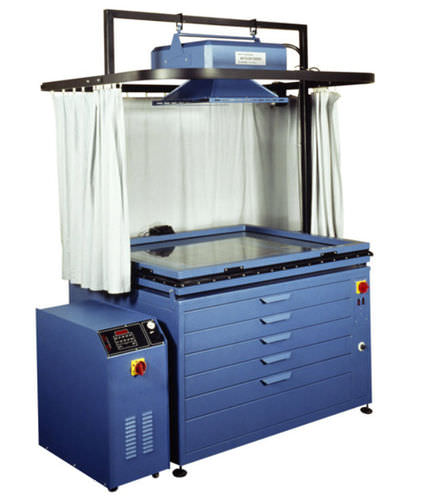

Our product line includes the SCREEN COPY AND DRYING UNIT that we manufacture as a complete system. The system consists of a screen copy frame, screen drying cabinet (with five racks), the energy-saving AKTICOP S MH-INSTANT COPY LAMP, a light integrator, a UV-resistant light protection curtain and a separate, mobile control panel. This screen copy system has been designed to precisely and uniformly expose and dry coated silk-screen frames with different frame profiles. The automatic vacuum exhaust and exposure process sequence begins immediately after start-up of the unit. The UV lamp is completely switched off during exposure pauses to achieve significant energy savings. That's not only good for your electric bill but also for your air-conditioning system during the summer months! The screen copy system is available in 5 standard sizes: 60 x 80 cm (Max. Screen Frame Size - 40 x 60 cm) 90 x 110 cm (Max. Screen Frame Size - 70 x 90 cm) 110 x 130 cm (Max. Screen Frame Size - 90 x 110 cm) 130 x 160 cm (Max. Screen Frame Size - 110 x 140 cm) 160 x 190 cm (Max. Screen Frame Size - 140 x 170 cm) We can also custom-manufacturer a unit for frame sizes up to 200 x 300 cm for you. The useful service life of the UV lamp averages 5,000 one minute exposures.


No catalogs are available for this product.

See all of Technigraf GmbH‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
