Stainless steel drying cabinet max. 140 x 170 cmfor horizontal screen printing framesfloor-standingrack-mount
Add to favorites
Compare this product
Characteristics
- Configuration
- stainless steel
- Applications
- for horizontal screen printing frames
- Portability
- floor-standing
- Other characteristics
- rack-mount
- Width
40 cm, 70 cm, 90 cm, 110 cm, 140 cm
(15.7 in, 27.6 in, 35.4 in, 43.3 in, 55.1 in)- Height
8 cm
(3.1 in)- Depth
60 cm, 90 cm, 110 cm, 140 cm, 170 cm
(24 in, 35 in, 43 in, 55 in, 67 in)
Description

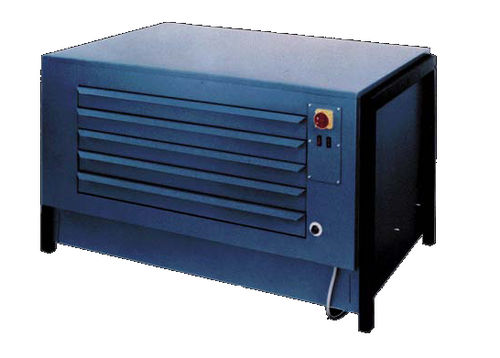

Our SCREEN DRYING CABINET has been designed for the horizontal, uniform drying of screen stencils. This hot-air drying cabinet utilizes recirculated air and is equipped with a thermostatic temperature control. The sturdy, all-steel housing has 5 ball bearing mounted racks (80 mm high) with 5 angled, individually adjustable screen supports each.
This unit delivers highly uniform drying performance.
The SCREEN DRYING CABINETS are available in the following maximum screen frame sizes:
40 x 60 cm
70 x 90 cm
90 x 110 cm
110 x 140 cm
140 x 170 cm
Special formats (up to max. 180 x 280 cm) are available upon request.
As options, our SCREEN DRYING CABINETS can be supplied with a double-jacketed housing that is insulated on all sides, in a stainless steel version, and with 3 additional racks (total = 8 racks).
