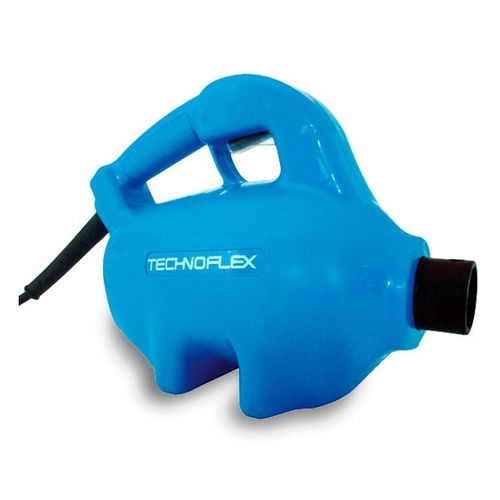

Electric vibrator Sangla
gasoline engineflexiblerotary

electric vibrator
electric vibrator
electric vibrator
electric vibrator
electric vibrator
Add to favorites
Compare this product


Characteristics

Operation
electric, gasoline engine
Product applications
flexible
Type
rotary
Rotational speed

12,000 rpm, 18,000 rpm (75,398.2 rad.min-1)

Power

2,300 W (3.127 hp)

Description

Double insulated electric motor for maximum operator protection, or gasoline engine. Minimum weight. Great performance area and vibrating. Long-lasting flexible shaft. Vibrating needles that incorporate double bearings. Quick disconnect for transmission exchange. SINGLE PHASE ELECTRICAL 230V: Power: 2,300 W Voltage: 230V-50/60 Hz Speed: 18,000 pm (empty) outer shell: FV polyamide ELECTRICAL SINGLE PHASE 115 V: Power: 2,300 W Voltage: 115 V – 50/60 Hz Speed: 18,000 pm (empty) outer shell: FV polyamide HONDA GX-160 PETROL ENGINE: Power5.5 CV Speed12,000 rpm outer shell: metal cage ∅ 25 mm| LENGTH 315 mm | WEIGHT 0.8 Kg | CAPACITY 9 m³ / h | PERFORMANCE AREA 25 cm | FREQUENCY 12,000 rpm ∅ 38 mm | LENGTH 455 mm | WEIGHT 2,5 Kg | CAPACITY 16 m³ / h | ACTUATION AREA 55 cm | FREQUENCY 12,000 rpm ∅ 48 mm| LENGTH 495 mm | WEIGHT 4 Kg | CAPACITY 28 m³ / h | PERFORMANCE AREA 70 cm | FREQUENCY 12,000 rpm ∅ 60 mm| LENGTH 575 mm | WEIGHT 6 Kg | CAPACITY 35 m³ / h | PERFORMANCE AREA 90 cm | FREQUENCY 12,000 rpm
