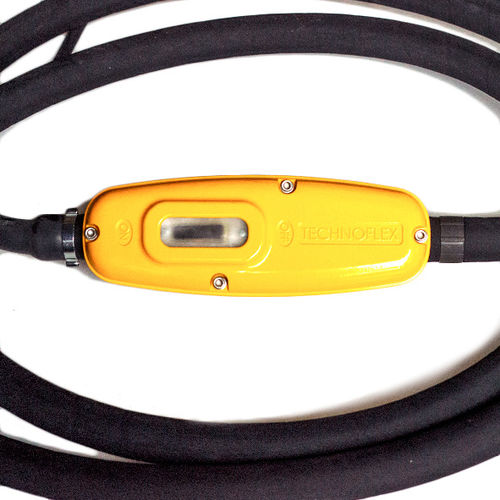

Electronic vibrator EDF series

rotary

Our new range of electronic vibrators constitutes an important technological advance over conventional high frequencies. Integrates the electronic converter into the transmission, making the previously known rotary frequency converter unnecessary, opening up a great variety of new possibilities ALL THE MODELS: RUBBER TUBE LENGTH 7 m | ELECTRIC CABLE LENGTH 15 m | With thermal protection of the needle. | POWER SUPPLY VOLTAGE 1≈ 230 V 50/60 Hz | OUTPUT VOLTAGE 3≈ 230 V 200 Hz. * On request it can be supplied with POWER SUPPLY VOLTAGE 115 V 50/60 Hz. * The length can be adapted as necessary (optional). EDF-38 LT: ∅ 38 mm | NEEDLE LENGTH 360 mm | NEEDLE WEIGHT 3,5 Kg | TOTAL WEIGHT 20 Kg | VIBRATIONS 13,500 rpm | CENTRIFUGAL FORCE 1,500N | NOMINAL CURRENT 2.5 A EDF-50 LT: ∅ 50 mm | NEEDLE LENGTH 398 mm | NEEDLE WEIGHT 5 Kg | TOTAL WEIGHT 21.5 Kg | VIBRATIONS 12,000 rpm | CENTRIFUGAL FORCE 3,300N | NOMINAL CURRENT 4 A EDF-60 LT: ∅ 60 mm | NEEDLE LENGTH 405 mm | NEEDLE WEIGHT 6.5 Kg | TOTAL WEIGHT 23 Kg | VIBRATIONS 12,000 rpm | CENTRIFUGAL FORCE 5,600N | RATED CURRENT 6 A EDF-70 LT: ∅ 70 mm | NEEDLE LENGTH 398 mm | NEEDLE WEIGHT 7.5 Kg | TOTAL WEIGHT 24 Kg | VIBRATIONS 12,000 rpm | CENTRIFUGAL FORCE 7,500N | RATED CURRENT 8 A
