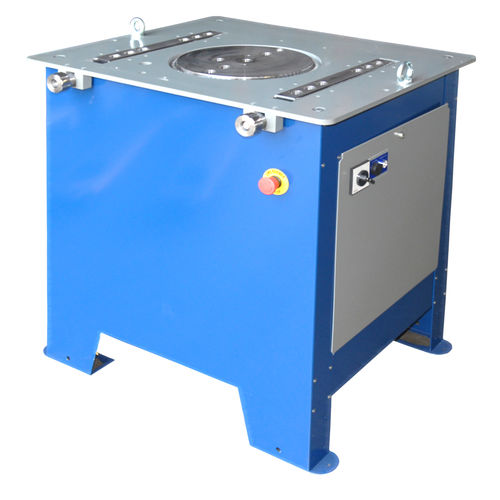

Electric bending machine P 30-S
concrete reinforcement

electric bending machine
electric bending machine
Add to favorites
Compare this product

Characteristics

Operation
electric
Product handled
concrete reinforcement
Bending capacity

Min.: 4 mm (0 in)

Max.: 24 mm (1 in)

24 mm (1 in)

Description

P 30-S Single-Phase – For bending rebars up to a diameter of Ø24 mm. Structurally identical to the classic Seim type P bending machines, but with the addition of two adjustable steel saddles along the sides of the machine, as in the Tecmor S and 4-S The presence of the saddles makes it possible to bend from 4 different positions as well as allowing the use of the bending arm for large radii, available on request. Standard Equipment Bushes Ø: n.2x 48 - n.lx 56 - n.lx 64 - n.lx 90 - n.lx 126 Pins Ø: n.3x 36 1 Bending square for small diameters + Pin 3 Reverse pegs 1 Pedal 1 Set of keys 1 Electrical outlet 4 Wheels Recommended accessories Central Pins Ø:20-24-32-40 Stirrup Equipment Rod + Latches Spiral Equipment SI8 Roller Bench Panel 9x9 Bushes Ø: 143 Bending with arm

Catalogs
