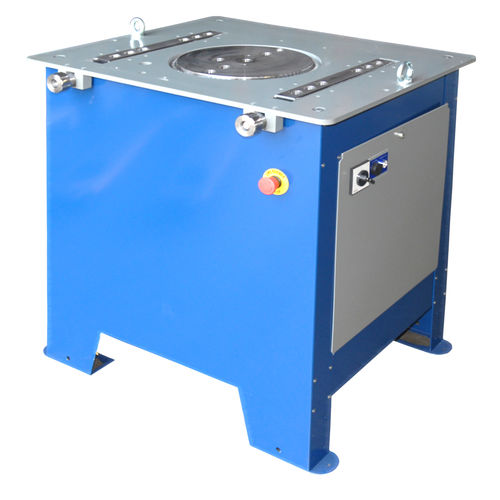

Electric bending machine P 30-S
for steel bar3-phase

electric bending machine
electric bending machine
Add to favorites
Compare this product


Characteristics

Operation
electric
Product handled
for steel bar
Other characteristics
3-phase
Bending capacity

26 mm
(1 in)

Description

Seim Product - P 30-S ∅ Max. - ∅ 26 rpm. - 7 ∅ max. 650 N/mm2 - 26 – 1 rebar 20 – 2 rebars 18 – 3 rebars Mot. Kw - 1,1 Dimensions cm - 83 x 76 x 87 h Weight Kg - 215 P 30-S Three-Phase – For bending rebars up to a diameter of Ø26 mm. Structurally identical to the classic Seim type P bending machines, but with the addition of two adjustable steel saddles along the sides of the machine, as in the Tecmor S and 4-S The presence of the saddles makes it possible to bend from 4 different positions as well as allowing the use of the bending arm for large radii, available on request. Standard Equipment Bushes Ø: n.2x 48 - n.1 x 56 - n.1 x 64- n.1x 90 - n.1x 126 Pins Ø: n.3x 36 1 Bending square for small diameters + Pin 3 Reverse pegs 1 Pedal 1 Set of keys 1 Electrical outlet 4 Wheels Recommended accessories Central Pins Ø: 20 - 24 - 32-40 Stirrup Equipment Rod + Latches Spiral Equipment S18 Roller Bench Panel 9x9 Bushes Ø:143 Bending with arm
