Circular air diffuser DCMQ series

squareceilinghorizontal

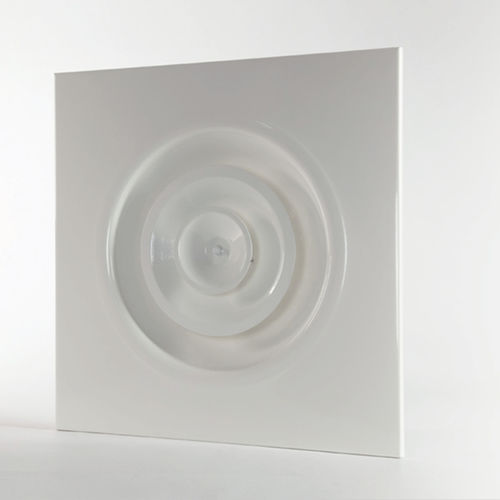

High-induction circular diffuser with adjustable cones made up of concentric truncated cone profiles on a square panel, suitable for installation on false ceilings with 600×600 panels. Height adjustable by means of an adjustment screw in order to change the direction of the air jet in relation to the required thermal conditions. SPECIFICATIONS • MATERIAL: aluminium and steel • SURFACE FINISH: epoxy powder coating resistant to impact and abrasion • COLOUR: RAL white 9010 glossy, 9016 glossy, 9003 mat. On request, coating in nonstandard RAL colours • FASTENING: by means of screws positioned on the diffuser neck • INSTALLATION HEIGHT: 2.7 – 6 m • USE: room cooling and heating GREEN BUILDING Contribute to obtain the credits of the major international rating systems for suistainable buildings: LEED: IP, EA, MR WELL: MATERIALS, COMMUNITY BREEAM: MAN, WST INSTALLATION Easy installation, adjustments and maintenance. The intermediate cones are easy to remove by turning the central hollow threaded pin. The damper fitted at the top of the diffuser is adjusted by acting on the adjustment screw through the hole in the threaded bar of the diffuser. It is fastened to the ceiling by means of screws on the diffuser neck. ADJUSTMENT Central cone in low position: optimal position in cooling conditions in order to have the largest horizontal diffusion radius without creating discomfort in the occupied area in rooms with an ideal height between 3 and 4 m. With this configuration, you have the best pressure drop
