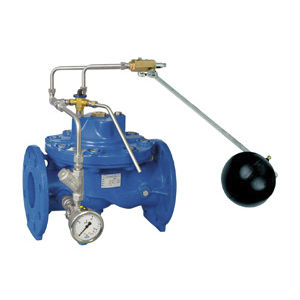

Diaphragm valve HM-GADhydraulicfloatregulating
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- hydraulic, float
- Function
- control, regulating
- Media
- for water
- Body
- flange, threaded
- Applications
- for tank
- Other characteristics
- ISO, DIN, ANSI, with internally-threaded connectors
- DN
Max.: 600 mm
(23.622 in)Min.: 50 mm
(1.969 in)- Pressure
25 bar
(362.6 psi)- Flow rate
Max.: 5,400 m³/h
(190,699.2 ft³/h)Min.: 16 m³/h
(565.03 ft³/h)
Description
FLOAT CONTROL VALVE. MAX/MIN LEVEL
The valve controls tanks and reservoirs emptying and avoids overflow.
The valve operates by means of a differential hydraulic float complete with regulating levels mounted on the tank side. The float maintains the valve closed and opens only when the minimum pre-set level is reached. Once the valve is open, float allows tank inlet until maximum water level is reached again.
TYPICAL APPLICATIONS
Controlled maintaining of constant water level in tanks and reservoirs.
