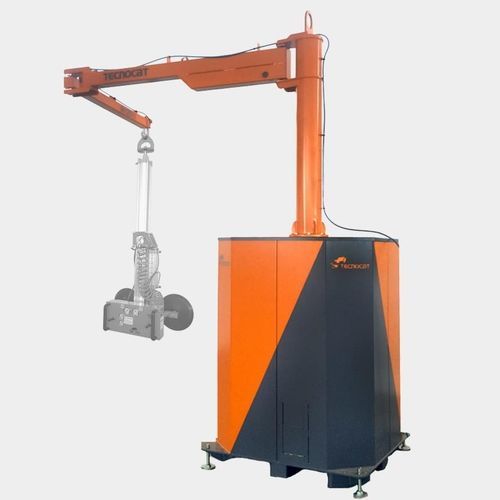

Pillar jib crane CML-B4-250

360°articulatedlifting

The CML-B4 is a lifting system specially designed for factory glass processes that require speed and light movements in tight spaces. It turns close to 360° and the movable base guarantees the correct location of the crane at every time. It is ideal for moving light loads up to 250Kg. This is an excellent team work with vacuum equipment models because VNL-G2 or VNL-GB2 (FACTORY SERIES) because they have their own lifting piston. The CML-B4 set provides high working performance on processing lines such as edger machines, vertical or horizontal CNC, laminate lines, tempering furnaces, cutting tables, aluminum window and door assembly, washing machines, etc The CML-B4 crane can be moved by overhead crane bridge or forklift. Options according to the type of support GR (Gravel) the counterweight is a box-shaped base with gravel filling. MC (Metal Counterweight) This base is a metal block and provides great stability in very little volume and surface. MP (Metal Plate) is installed anchored directly to the floor. WA (Wall) does not have its own support column, but is installed directly on an existing column that works as a support, by means of welding or brackets.
