Pedestrian door
swinggalvanized steelindustrial

pedestrian door
pedestrian door
Add to favorites
Compare this product


Characteristics

Type
swing
Material
galvanized steel
Applications
industrial, indoor
Other characteristics
fireproof, pedestrian
Width

Min.: 1,340 mm (53 in)

Max.: 2,660 mm (105 in)

Height

Min.: 2,670 mm (105 in)

Max.: 2,670 mm (105 in)

Description

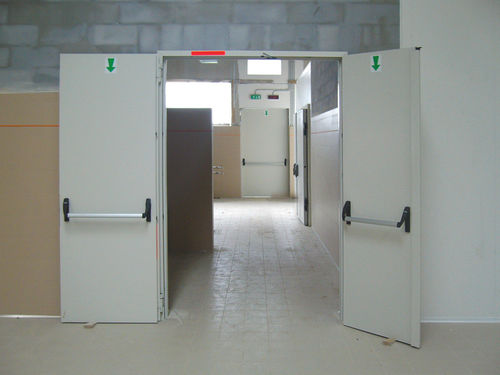

Galvanised steel double panel pedestrian door, insulation with insulating materials, without ground profile, total thickness 60 mm. Angular frame in galvanised steel profile with wall-up clamps, joints for assembling on site and lower screw spacer. Leaf ram on hinges side. Lock with cylinder hole and insertion for comprised “patent” type key. Accident-prevention black colour handle with steel inside and complete with plates with cylinder hole and insertions for “patent” type key. Nr. 2 hinges: n. 1 spring hinge for possible self-closure and n. 1 equipped with thrust bearing spheres and screws for vertical adjustment. Leaf internal reinforcements as pre-disposition for possible installation of door closer and anti-panic bar. Standard coating with thermoset epoxypolyester powders, non-scratch embossed finish, Turquoise colour. On request coating on RAL colours or graphic decorations. Maximum dimensions 1340 x 2670 mm for one-leaf door, 2660 x 2670 mm for two-leaf door. Sound insulation value with anodized ground gasket: REI 60 = 29,5 dB REI 120 = 30 dB Door weight: REI 60 ca. 37 kg/m2 clear opening, REI 120 ca. 46 kg/m2 clear opening.
