cam switch / multipole / electromechanical

Add to MyDirectIndustry favorites
cam switch / multipole / electromechanical cam switch / multipole / electromechanical
{{requestButtons}}

Characteristics

  • Type:

    cam

  • Number of poles:

    multipole

  • Other characteristics:

    electromechanical

Description

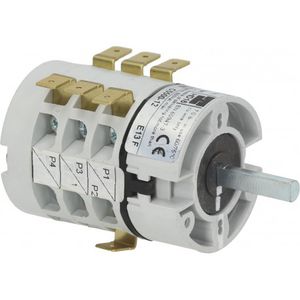

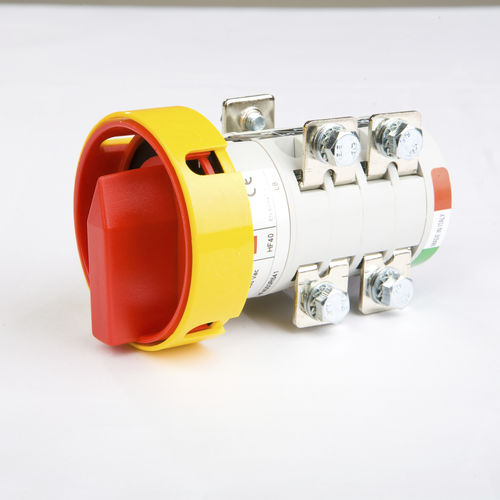

Our catalogue of HD / HF series cam switches are a generation of traditional rotary switches, available from 12 to 63 A. They are made with materials that have a high degree of mechanical and electrical resistance as well as being heat resistant and self-extinguishing.
IP45 protection grade (it is possible to increase this grade by adapting the relevant accessories);
Terminal protection grade IP00 / IP20; rated insulation voltage 660 V; panel fixing ø 28 mm and 32 mm;
Connection on DIN RAIL 35; screw connection terminals clamping screw plates, up to a capacity of 32 A with wire attachments for high series;
Angles of manoeuvre 30°-45°-60°-90°;
Double break contacts in silver alloy with forced positive opening;
Outer casing in polyamide plastic.
RoHS – EC –IMQ certification.
