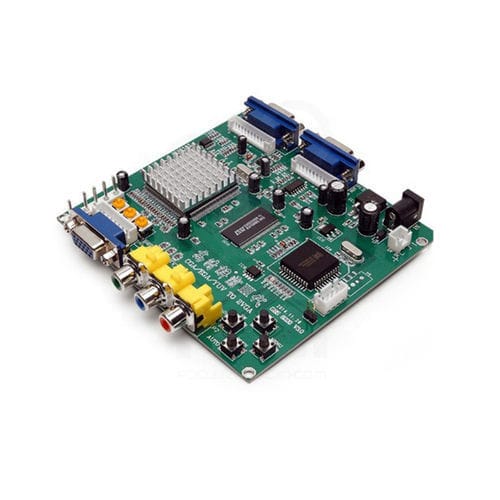

High-speed printed circuit board

custom-madehigh-frequencymultilayer

This high-performance, high-density assembly is designed to meet the rigorous demands of 5G networks, fiber optic terminals, base stations, and data transmission equipment. Built with a focus on signal integrity, thermal management, and unwavering reliability, our PCBA ensures seamless data flow, minimal latency, and maximum uptime. It is the foundational component that empowers OEMs to deliver robust, scalable, and future-proof telecommunication solutions to a connected world. - Key Features & Benefits: - High-Frequency & High-Speed Design: Optimized layout and materials (e.g., Rogers, FR-4 High-Tg) to minimize signal loss, cross-talk, and electromagnetic interference (EMI), ensuring pristine performance in high-frequency RF and high-speed digital applications (e.g., 5G mmWave, 10G+ optical networking). - Exceptional Reliability & Longevity: Utilizes industrial and automotive-grade components rated for extended temperature ranges and continuous operation. Manufactured with strict process controls to ensure product longevity, reducing field failure rates and maintenance costs. - Advanced Thermal Management: Incorporates design features like thermal vias, embedded heat sinks, and planes for efficient heat dissipation from critical components such as FPGAs, ASICs, and power amplifiers, preventing overheating and ensuring stable performance. - High-Density Integration: Employs HDI (High-Density Interconnect) technology and fine-pitch components (BGAs, QFNs) to maximize functionality within a compact form factor, which is crucial for space-constrained telecom chassis and modules. - Rigorous Testing & Compliance: Every assembly undergoes comprehensive testing, including In-Circuit Test (ICT), Flying Probe Test, and Functional Test (FCT), to verify performance against specifications. Designed to comply with key telecommunications and safety standards (e.g., TL9000, NEBS, CE, FCC, RoHS). - Scalable & Customizable Architecture: Offered as a platform that can be customized to specific functional requirements, including the integration of specialized processors (SoCs, FPGAs), memory configurations, and a variety of network interface options (SFP+, QSFP, RJ45, Fiber Optic transceivers). - Technical Specifications: - Board Type: Multi-layer (8-20+ layers), HDI with microvias. - Base Material: High-Performance FR-4, Halogen-Free, or specialized RF laminates. - Key Components: High-speed processors (ARM, x86, MIPS), FPGAs, DDR3/4/5 memory, Flash storage, PHY chipsets, and power management ICs (PMICs). - Interfaces: Ethernet (1G/10G/25G), SFP/SFP+ cages, USB, PCIe, Serial (RS-232/485), Synchronous Optical Networking (SONET/SDH) interfaces. - Operating Temperature: -40°C to +85°C (extended range available). - Finish: Electroless Nickel Immersion Gold (ENIG) or Immersion Silver for excellent solderability and surface planarity. - Applications: - 5G NR Base Stations (gNodeB) and Small Cells - Optical Line Terminals (OLT) and Optical Network Units (ONU) for FTTx - Network Switches and Routers - Multiplexers (WDM, DWDM) - Baseband Units (BBU) and Remote Radio Units (RRU) - Network Interface Cards (NIC) and Modems - Fast Delivery - Quality Assurance - 24/7 Customer Service - Hot Tags: high-reliability pcba for next-gen telecommunication systems, China, factory, customized, professional - SKU: 278496265 - Brand: Tecoo - Contact: [email protected], +8615067799396 - Address: No.37, Yanfan Road, Yangyi Town, Lucheng District, Wenzhou, Zhejiang - Website: https://www.tecooems.com/internet-of-things/pcba-for-telecommunication-systems.html
