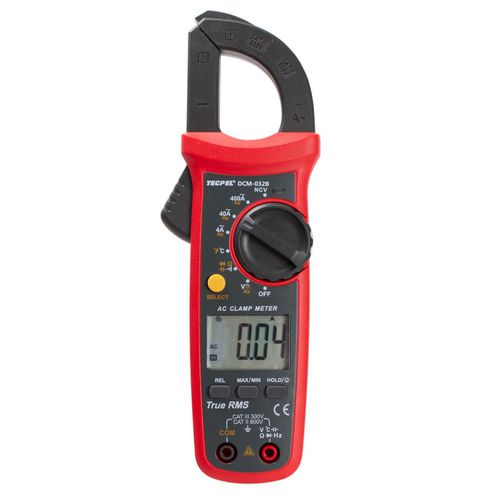

Digital clamp multimeter DCM-032B
portable600 V400 A

digital clamp multimeter
digital clamp multimeter
digital clamp multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
600 V
Max current
400 A
Safety rating
cat III
Additional features
frequency
Protection level
rugged
Power supply
AAA LR03 batteries
Applications
for HVAC
Other characteristics
AC/DC, true RMS
Max DC voltage

Max.: 600 V

Min.: 1 V

Max AC voltage

Max.: 600 V

Min.: 0 V

Max AC current

Max.: 400 A

Min.: 0.04 A

Max resistance measure

Max.: 40,000 kOhm

Min.: 0 kOhm

Max capacity measure

Max.: 4,000 µF

Min.: 0 µF

Max frequency measure

Max.: 10,000 Hz

Min.: 10 Hz

Description

* 4000 Count * True RMS * Small current measurement * 4mF Cap. measurement * LCD backlight * Jaw opening 28mm DCM-032B/DCM-033B series Hand-held automatic shifting true effective value digital hook meter. It designed in accordance with the safety standard EN61010-2010 CAT II600V/CAT III 300V level with full-function gear anti-burn protection which can meet high reliability and High safety operation requirements; The product contains the basic functions of electrical measurement with high-precision measurement and extended temperature measurement functions. The more novel appearance design makes it an excellent measurement tool for electronic motors with superior performance.
