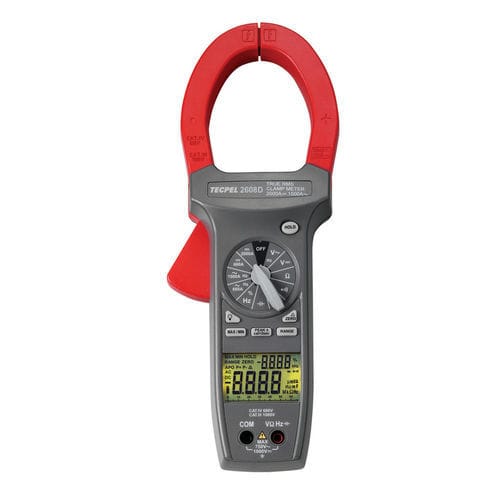

Digital clamp meter DCM-2608Dportable1000 V2000 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 2000 A
- Safety rating
- cat III, cat IV
- Additional features
- frequency
- Protection level
- rugged
- Applications
- industrial
- Other characteristics
- AC/DC, TRMS
- Max DC voltage
Min.: 1 V
Max.: 1,000 V
- Max AC voltage
Min.: 1 V
Max.: 750 V
- Max DC current
Min.: 1 A
Max.: 2,000 A
- Max AC current
Min.: 1 A
Max.: 1,500 A
- Max resistance measure
Min.: 1 kOhm
Max.: 66,000 kOhm
- Max capacity measure
Min.: 0 mF
Max.: 7 mF
- Max frequency measure
Min.: 1 Hz
Max.: 1,000,000 Hz
- Max DC voltage resolution
0.1 mV
- Max AC voltage resolution
0.1 mV
- Max DC current resolution
100 mA
- Max AC current resolution
100 mA
- Length
281 mm
(11.06 in)- Width
108 mm
(4.25 in)- Height
53 mm
(2.09 in)- Weight
570 g
(20.11 oz)
Description
( ±Peak Hold) (TRUE RMS)
(Backlight)
6600 counts, bar graph display
Dual Display of Frequency with Current or
Voltage or % Duty Cycle
Auto ranging
Auto power off
Overload protections
Safety input jacks
Safety test leads
Safety: EN61010-1, EN 61010-2-032,
CAT IV 600V, CAT III 1000V, CE approved
Jaw opening capability: 57mm conductor.
Dimensions: 281mm(H)×108mm(W)×53mm(D)
Weight: Approx. 570g
Catalogs
No catalogs are available for this product.
See all of Tecpel Co., Ltd.‘s catalogs
