TECPEL DP-50, 50MHz High Voltage Oscilloscope Differential Probe for oscilloscope
Product ID: DP-50

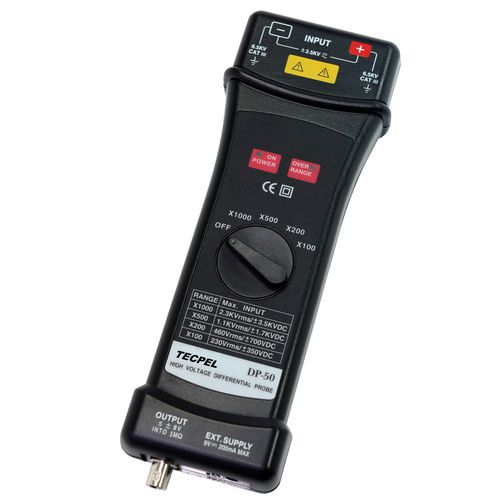

DP-50 Differential Probe 50MHz 6500V
The DP-50 Differential probe provides a safety means for measuring differential voltage to all models of oscilloscope. The DP-50 coverts the high differential voltage (<=7000 peak) into a low voltage (<=7.0v, with reference to the earth) and display on the oscilloscopes. The DP-50 is designed to operate with the 1M Ohm impedance oscilloscope. When combine with the 50 Ohm load, the attenuation will be 2 times. We recommend to use Tecpel PL-10 with DP-50 to expand the measuring with Digital multimeter (DMM) to observe more accurate measurement. The accuracy of oscilloscope is 3% and the DMM is less than 1%. Note: If you connect DP-50 to the DMM without Tecpel PL-10 the accuracy will be higher than 10%.
Specifications:
4 Range Attenuator
50MHz Bandwidth
2 Power Sources
6500V High Voltage Input
<6.5V Low Battery Indicator
<5.5V Auto Power Off
Separable Design, Convenient, Durable
MEET IEC1010, UL3111, TUV GS, CAT III 6500V
