3-way manifold MBT-2.3DTstainless steelhigh-pressure
Add to favorites
Compare this product
Characteristics
- Number of channels
- 3-way
- Material
- stainless steel
- Other characteristics
- high-pressure
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 420 bar
(6,092 psi)- Port size
0.5 in
Description

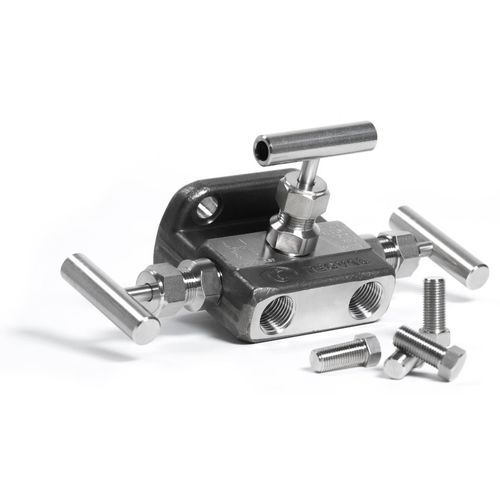

The TECVAL MBT-2.3DT is designed for high pressure and temperature service that works for fluids. The device comes with non rotating ball shut-off made from stainless steel. The pressure rating reaches up to 420 bar maximum and the temperature has a range of 20ºC to 400ºC. This product is also provided with four screw 7/16 UNF and two PTFE joints for assembly of the transmitter. It is 100 % fully tested to ensure reliable and accurate performance.
Catalogs
No catalogs are available for this product.
See all of TECVAL, S.L.‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
