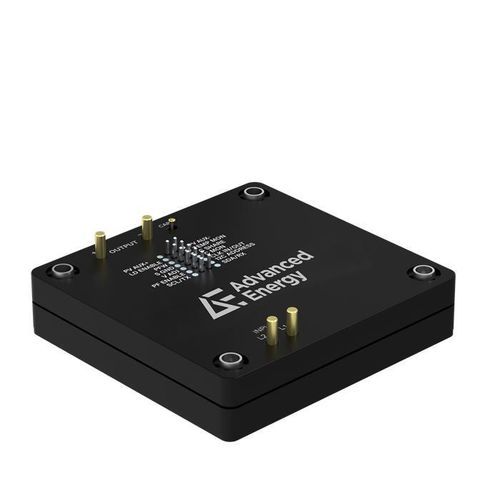

PFC module AIH03ZPFC

Overview
The AIH03ZPFC is a board‑mount, contact‑cooled half‑brick power factor correction (PFC) module intended for industrial, medical, defense and telecommunications power systems that require high efficiency, compact size and strong thermal performance. The module provides a regulated, non‑isolated 390 VDC output, up to 1100 W output power and peak efficiency up to 97.3%. Integrated features include internal inrush current limiting, digital PMBus® control and monitoring, auxiliary power for external housekeeping and variants for enable polarity.

Features

• Regulated 390 VDC output (non‑isolated)
• Integrated PMBus® digital control and monitoring
• Internal inrush current limiting
• Enable function: positive or negative polarity variants
• Input range: 85–264 VAC or 127–373 VDC
• Output power: 1100 W (90–264 VAC)
• Output current: nominal up to 3 A (table lists 2.82 A max)
• Output adjustment range: 330–408 VDC (nominal 400 VDC)
• Output load regulation: ±1% Vout
• Operating temperature: -40 to 100 °C
• Dimensions (W×D×H): 2.4 in × 2.3 in × 0.52 in
• Power density: 380 W/in³

Benefits

• High peak efficiency (up to 97.3%) and 380 W/in³ power density reduce system losses and footprint
• No derating across input voltage range for consistent power delivery
• Integrated functions reduce external circuitry, components and PCB area
• Internal inrush limiting improves safe startup and simplifies implementation
• PMBus® control enables digital monitoring, telemetry and system integration
• Seamless paralleling to scale power
• Designed to simplify compliance and thermal management in compact systems

Specifications (page table)
Output Power (W): 1100
Length (Inches): 2.3
Width (Inches): 2.4
Height (Inches): 0.52
Minimum Output Current (A): 0
Maximum Output Current (A): 2.82
Output Voltage Range (V): 350 to 420 Vdc
Minimum Output Power (W): 1100
Maximum Output Power (W): 1100
Minimum Input Voltage (V): 90
Maximum Input Voltage (V): 264
Warranty (Years): 2

Product Notes
Includes PMBus® digital control and monitoring, internal inrush limiting, auxiliary power support for external housekeeping and variants for enable polarity. Engineered for contact cooling in board‑mount half‑brick PFC applications where thermal performance and compact size are required.

Technical characteristics / specifications

• Series / Model: AIH03ZPFC series
• Regulated output: 390 VDC (non‑isolated), adjustable 330–408 VDC
• Peak efficiency: up to 97.3%
• Power density: 380 W/in³
• Output power: 1100 W
• Output current: up to 3 A (nominal; table lists 2.82 A max)
• Input range: 85–264 VAC (AC), 127–373 VDC (DC)
• Output load regulation: ±1% Vout
• Operating temperature: -40 to 100 °C
• Form factor: half‑brick, board‑mount, contact cooling
• Controls: PMBus® digital control and monitoring
• Additional features: internal inrush limiting, auxiliary power support, enable polarity variants
• Warranty: 2 years
