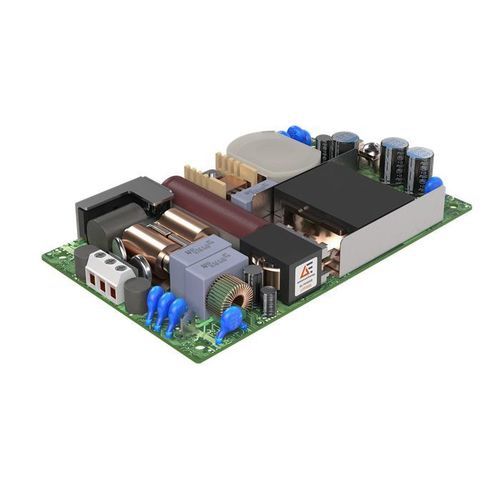

Open frame power supply LPP300S series

AC/DCsingle-outputSMPS

Overview
The LPP300 Series is a compact open-frame AC-DC power supply delivering up to 300 W (with airflow) in a low-profile 0.75 in form factor. Available nominal outputs are 12 V, 24 V and 48 V. Units meet Class B EMI (4th Edition) and provide Type BF medical leakage performance, making them suitable for medical and industrial equipment such as patient monitors, infusion pumps and test & measurement systems. Integrated protections include output overvoltage, short-circuit and overload protection.

Features

• Low profile height: 0.75 in
• Up to 300 W output power (with airflow)
• Compact dimensions: 3 in x 5 in x 0.75 in
• Nominal outputs: 12 V, 24 V, 48 V
• Meets Class B EMI (4th Edition) and Type BF leakage
• Operating range: -20°C to 70°C (with derating)
• 12 V fan output
• High efficiency (~90% typical)
• ±5% output adjustment

Benefits

• Enables compact product designs where height is constrained
• Class B EMI and 4th Edition compliance simplify EMC certification
• Type BF leakage rating supports medical device integration
• Comprehensive protections increase system reliability

Specifications

• Output power: 300 W (max)
• Minimum output power: 170 W
• Output voltage options: 12 V / 24 V / 48 V (range 12–48 V)
• Minimum output current: 2.61 A
• Maximum output current: 14.17 A (model dependent)
• Dimensions (W x L x H): 3 in x 5 in x 0.75 in
• Form factor: open-frame, embedded PSU
• Input voltage range: 90–264 VAC
• Operating temperature: -20°C to 70°C (with derating)
• Fan output: 12 V
• Efficiency: ~90% typical
• Protections: output overvoltage, short circuit, overload
• EMC: Class B (4th Edition)
• Medical: Type BF leakage
• Warranty: 3 years
