SDI-12 rain gauge TBSRGM1with data logger
Add to favorites
Compare this product
Characteristics
- Other characteristics
- SDI-12, with data logger
Description

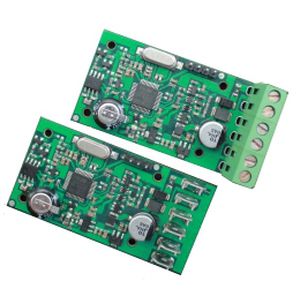

The TBSRGM1 is a retrofit module to equip tipping bucket rain gauges with data logging capability and SDI-12 interface.
The TBSRGM1 has been designed to work with any type of tipping bucket rain gauge with switch outputs. The TBSRGM1 has an on board real time clock with supercap buffer. It is easy to install and easy to configure. The TBSRGM1 is available with either screw terminal block interface or with blade terminals.
SPECIFICATIONS
SDI-12 interface
6V – 16V supply range
Real time clock/calendar
Data logging
Low power consumption
PCB can be customized
Hermetically sealed
Small size
Rugged design
Simple installation
Operating Temperature Range: -40°C – +85°C
TARGET APPLICATIONS
Meteorology
Agricultural monitoring
