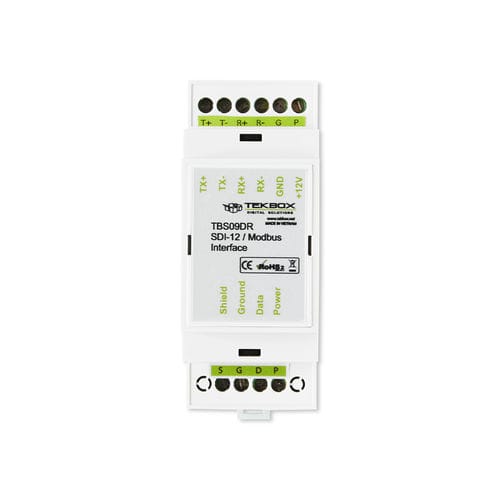

Communications converter TBS09ModbusDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- communications
- Bus
- Modbus
- Other characteristics
- DIN rail
Description
The TBS09DR is a converter to connect Modbus sensors to a SDI-12 master device such as a data logger or telemetry unit. It can connect multiple Modbus sensors in parallel by setting the corresponding address of the individual Modbus sensors using an extended SDI-12 command, upfront to issuing the measurement commands.
The TBS09DR provides a rich command set to offer maximum flexibility for configuring the device to a sensor with Modbus interface.
SPECIFICATIONS
SDI-12 Master to Modbus Slave Converter
Multiple sensors can be connected
SDI-12 Standard V1.3
Highly configurable
Switched sensor supply voltage output
6 – 16V supply voltage
7mA current consumption when active
Less than 100µA idle current
Operating Temperature Range: – 40°C … + 85°C
TARGET APPLICATION
SDI-12 sensor networks
