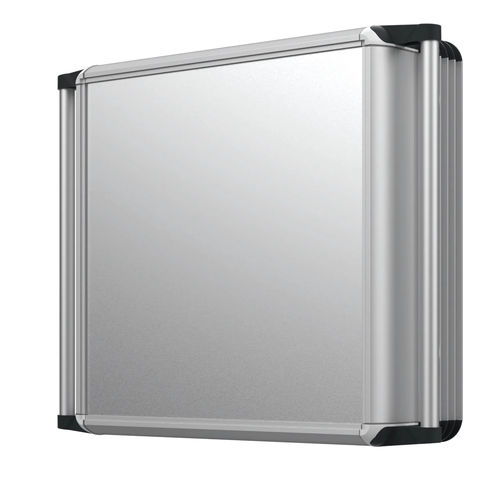

Wall-mount enclosure ECO.6091.0200 series

panelmobilefor surface installation

The ECO 060 series is an additional enclosure for increasing the internal usage area of the panel. With its modern line and elegance; together with the articulable of additional panel feature the modularity has reached to a higher level. The internal usage depth of the these panels is 150mm and the direct connection support to the operator arms is provided by the TK060.830 module (connection addition from panel). By means of its unique aluminum profiles, it has a lighter and more robust structure than other examples. The two panels can be opened and closed in the middle by means of the hinge and lock system in the middle part. As an added feature, this panel has outward wings that facilitate cooling. The heat accumulation inside the panel can be easily removed by means of these wings and it ensures optimum operation of the system. It has a sealing feature in case of undesirable conditions like dust etc. The panel profile, panel corners, front and back panels are produced with aluminum, corner covers are produced with plastic material. For a much more ergonomic use, two handles have been used to this panel.
