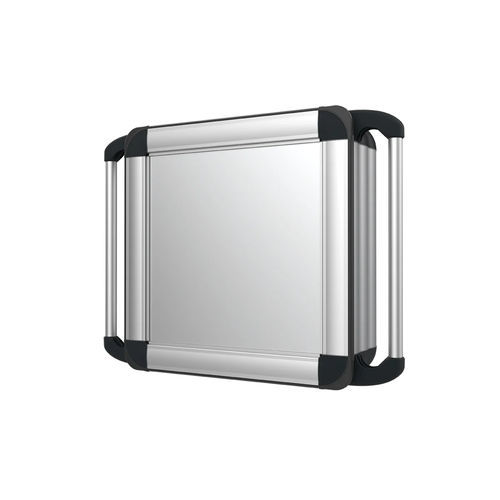

Wall-mount enclosure TKP2000-4000 seriespanelsurface mountedrectangular
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount, panel, surface mounted
- Configuration
- rectangular, modular
- Material
- silicone, aluminum, anodized aluminum, painted aluminum
- Application
- industrial, indoor, outdoor, for electronics, monitoring, for IoT applications, for monitors, PLC
- Protection level
- waterproof, IEC, IP65
- Other characteristics
- custom, ergonomic, lockable, LCD touchscreen, protection, compact
- Width
300 mm, 400 mm, 500 mm, 600 mm
(11.8 in, 15.7 in, 19.7 in, 23.6 in)- Height
300 mm, 400 mm, 500 mm, 600 mm
(11.8 in, 15.7 in, 19.7 in, 23.6 in)- Depth
152 mm
(5.98 in)
Description
TKP2000 panels have a minimum 300×300 mm, maximum 600×600 mm (front panel size) and 152 mm mounting depth, thanks to the LM structure with silicone gasket. It can be personalized thanks to anodized panel profiles and colored corner components. Thanks to its modular design, it offers the possibility of mounting the front panel sheet with or without screws (valid for 2mm sheet thickness). The lock and hinge products used in the panels have IP65 protection. The panel color is natural oxide E6/C0, the corner components are RAL7016 anthracite gray and the protection class is IP65/IEC 60/529. There are two handles to facilitate use. Please contact us for non-standard special colors and sizes.
