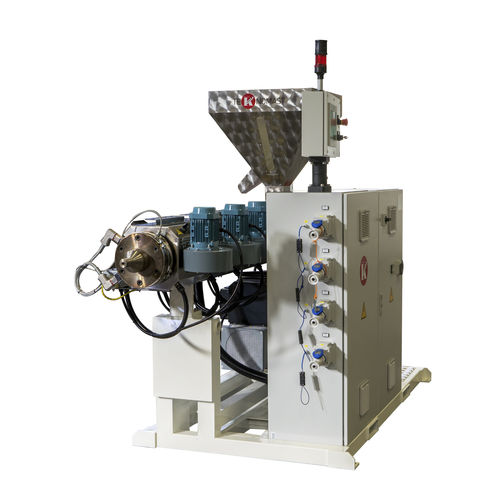

PVC extruder RSZ
for PPfor PEfor ABS

PVC extruder
PVC extruder
PVC extruder
PVC extruder
PVC extruder
PVC extruder
PVC extruder
Add to favorites
Compare this product


Characteristics

Treated material
for PVC, for PP, for PE, for ABS
Number of screws
single-screw
Other characteristics
compact, grooved feed
Output

Min.: 10 kg/h (22.0462 lb/h)

Max.: 250 kg/h (551.1557 lb/h)

Screw diameter

Min.: 35 mm (1 in)

Max.: 90 mm (4 in)

Screw length

Min.: 1,125 mm (44 in)

Max.: 2,700 mm (106 in)

Temperature

Min.: 80 °C (176 °F)

Max.: 280 °C (536 °F)

Overall length

Min.: 1,700 mm (67 in)

Max.: 3,500 mm (138 in)

Overall width

Min.: 1,000 mm (39 in)

Max.: 1,500 mm (59 in)

Total height

Min.: 2,100 mm (83 in)

Max.: 2,100 mm (83 in)

Weight

Min.: 800 kg (1,764 lb)

Max.: 2,800 kg (6,173 lb)

Power

Min.: 24 kW (33 hp)

Max.: 115 kW (156 hp)

Description

The RSZ line includes a range of extruders with a screw diameter from 35 to 120 mm and an L/D 1:25 or L/D 1:30 ratio based on the type of material. A degassing version is also available, which requires a longer extrusion screw, L/D 1:33. • The extruder structure is made with a base in arc-welded steel plates and profiles. • The extrusion screw is made with a specific profile based on the material to be processed. It can be thermostat ready. • The extrusion section is divided into independent thermo-regulation zones with heating through electrical collar heating elements and cooling with electric fans. • Stainless steel cylinder protection with insulated casings for each zone • Cylinder, helical and straight-toothed reduction units in case-hardened and tempered steel, ground teeth. • Direct motor-reduction unit transmission. • AC motor • Water-cooled supply section with manual adjustment valve. • Stainless steel hopper on a three-position slide. • Control panel
