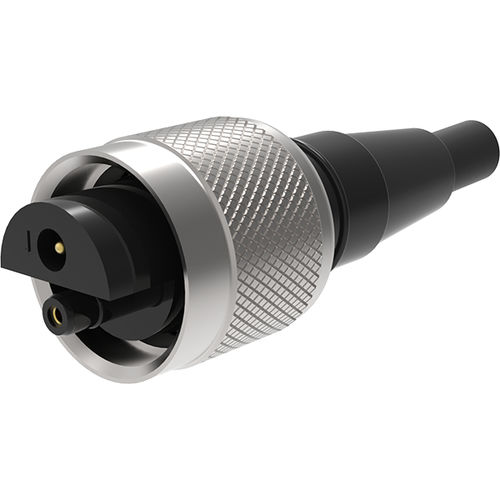

Electrical power supply connector AGMroundDCfor marine applications
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- round
- Electrical characteristics
- DC
- Product applications
- for marine applications, for marine applications
- Domain
- for marine applications
- Primary current
8 A
- Voltage
1,500 V
Description
Standard submersible connectors with 2 or 4 pins.
Water blocked versions available
Survives high shock environments, such as those found in seismic surveys
Excellent mechanical survivability in extreme environments
Waterproof electrical connectors for high shock extreme applications.
Depth
300 PSI equivalent(when fully and properly mated)
Operational Temperature
20° F - 158°F
Mates/Demates
100
Voltage Rating
1500 VDC
Current
8 Amps DC maximum
Contact Resistance
100mΩ maximum
(measured in accordance with procedure EIA-364-06C)
Vibration
1000g peak
Isolation
500MΩ at 500 VDC
(when measured pin-to-pin or pin-to-shell)
Tensile
500 lbs axial pull
