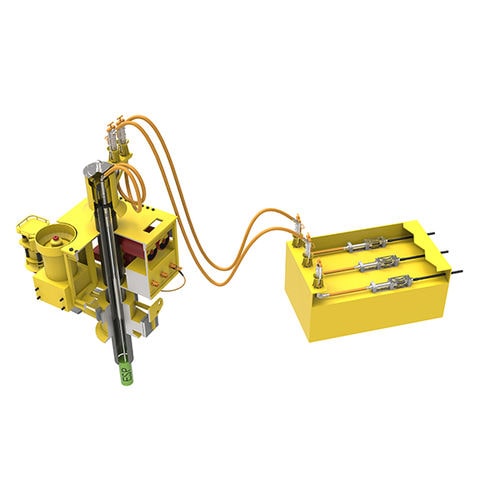

Connection system ODI

Designed for deep water subsea pumping systems Three-Phase configuration 6/10(12) kV 250 A Reliability validated by extended testing and field data Proven, deployed system components ​The Teledyne Oil and Gas 10 kV subsea power electrical connection system is a three-phase system rated to 250 A and 6/10 (12) kV. The electrical connection system is designed to provide power to motors used for subsea pumping systems. The system consists of: 1. Umbilical Termination (UT10-250) 2. Wet-Mate Connectors (Nautilus WM10-250) 3. Penetrator (P10-250) EFL and Umbilical Termination Specifications Rated Voltage: 6/10(12) kV Configuration: Three-Phase Rated Current: 250 A at 40°F (4°C) Maximum Water Depth: 10,000 ft (3,048 m) Body Material: Titanium, Inconel, Super Duplex, and Stainless Steel ​
