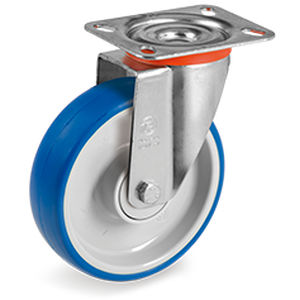

Medium load caster 61CC series
swivelbase platepolyurethane-coated

medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
medium load caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
for medium loads, polyurethane-coated, industrial, for trolleys, handling, polyurethane, polyamide, thermoplastic, resin
Load capacity

Min.: 87 kg
(192 lb)

Max.: 300 kg
(661 lb)

Wheel diameter

Min.: 80 mm
(3.15 in)

Max.: 200 mm
(7.874 in)

Description

Suitable for trolleys and machinery with medium-duty loads, also in case of continuous handling. Suitable for indoor and outdoor use for frequent washing and sterilisation. Excellent rolling resistance. Examples of recommended applications: trolleys for industrial indoor use, tubular trolleys, trolleys for food and chemical industry, mobile scaffoldings. TECHNICAL FEATURES WHEEL TREAD: thermoplastic polyurethane tread; hardness 85 Shore A; excellent rolling resistance and elasticity, good resistance to wear and to tearing CENTRE: polyamide 6 BRACKETS: NL, NL X, ENVIRONMENTS OF USE Suitable for industrial environments, also in presence of water and saturated vapour, alcohol and glycol, mineral and organic acids. FLOORS Suitable for tiles and cement-resin. Not recommended unpaved floors or in the presence of processing residues. Not suitable in the presence of obstacles, even if small. They do not mark or damage fragile floors. FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.
