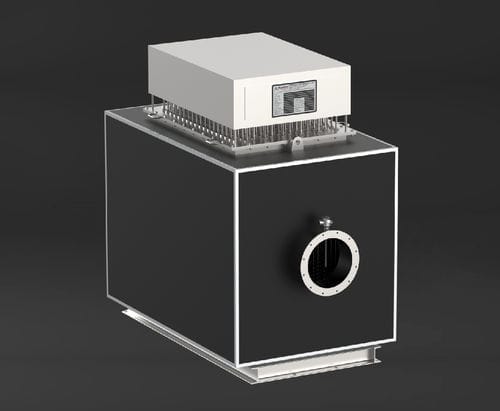

Duct heater

Duct heaters are devices which are an assembly of multiple heating elements mounted in a plate or casing and used to heat the air in a non-pressurized condition. The Heater bundle is usually inserted inside a duct line or an insulated body through which air passes and get heated up to required temperature. Duct heater elements can be of open coil, tubular or finned tubular heating elements, depending upon the application, temperature etc. If an application needs a very large capacity of heat duty, several smaller capacities the duct heater bundles can be made and assembled in series. This will help not only to get the desired temperature at varying process condition but also eases the job of maintenance and spares cost. Technical Specifications Rating From 0.5kW 2000kW (Max) in Single or combination Design Temperature -40°C to 600° C Duct Body MS / SS Insulation Ceramic Glass Wool Cladding SS / Aluminum Terminal Enclosure Weatherproof or Flameproof Control System Thyristor control or Contactor control or Thermostatic control ( Low wattage & single-phase systems) Protections & Control Element Skin Temperature Control Process Temperature Control Earth Leakage Protection. Overload Current Protection. Installation Horizontal / Vertical
