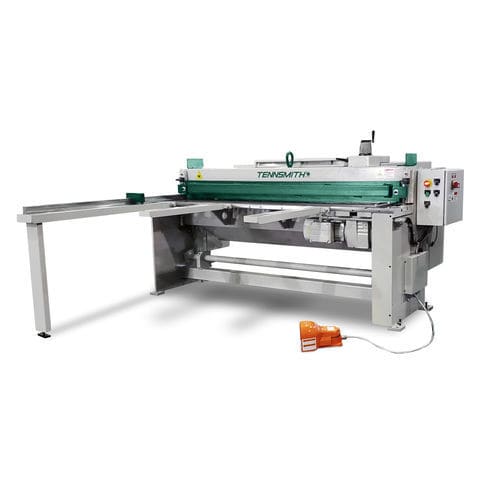

Mechanical shear MSE616
sheet metalprecision

mechanical shear
mechanical shear
Add to favorites
Compare this product


sheet metal
Other characteristics
Plate thickness

1 mm, 1.6 mm
(0 in, 0.1 in)

Working length

1,854 mm
(72.99 in)


Tennsmith’s mechanical shears utilize a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The MSE616 is available as a standard model or in our popular Performance Package. Model MSE1016 comes standard with Performance Package F or R (see below). The MSE Series is based on our popular LM model shears. Standard features include a 30-inch front-operated 2x back gauge system and 4-edge high carbon/high chromium (HCHC) blades and precision bearings. The MSE616 is available as a standard model or in our popular “Performance Package” configuration which includes a 5′ squaring arm, a pair of front support arms, and an air operated sheet support is available in two styles: System R drops the supported material to the rear of the machine. System F returns the supported material to the front of the machine via a front return chute. If you are adding a shears product to your quote and are interested in the optional Performance Package, follow link below to select your system to add to quote. OPTIONAL SHEET SUPPORT SYSTEM The optional sheet support system is recommended for gauging of thin material. With this air-powered support mechanism, one operator can effectively shear cumbersome, light-gauge stock. The sheet support system is available in two styles: System F, available on models LM1014 and LM1214, is a front return support which drops sheared parts to a front chute for easy retrieval; and support System R which drops sheared material to the rear of the machine. Unlike competitive front return systems, with the LM Series Performance Package F, you can cut materials longer
