Resistance temperature sensor TST100
digitalIP65outdoor

resistance temperature sensor
resistance temperature sensor
Add to favorites
Compare this product


Characteristics

Technology
resistance
Output
digital
Protection level
IP65
Applications
outdoor
Other characteristics
flat
Temperature

Max.: 85 °C (185 °F)

Min.: -40 °C (-40 °F)

Description

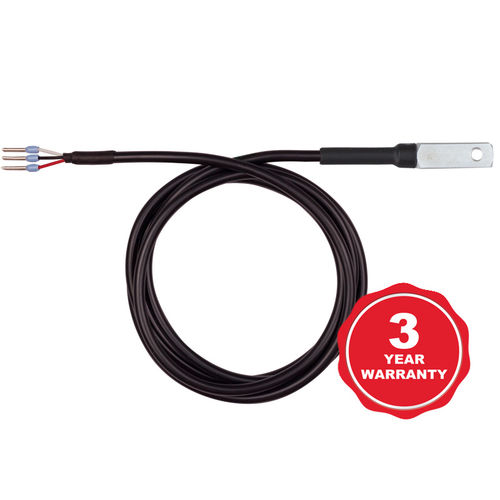

TST100 is a 1-Wire temperature sensor with -40 to +85°C working range and IP65 protection. TST100 is a 1-Wire temperature sensor. The sensors can be used outdoor because of its IP protection. The temperature sensor integrates a band-gap temperature sensor element as well as signals processing for a fully calibrated digital output. Used digital signal processing allows accuracy as low as ±0.5°C. Each sensor has a unique 64-bit serial code, as a result, a few sensors can work on the same 1-Wire bus. TST100 measures temperatures in the range from -40 to +85°C (-40 to 185°F). The 1-Wire temperature sensor uses a special flat aluminum head, for direct object assembly. The direct assembly ensures low thermal resistance, respectively fast response of the system. The temperature sensor has one-meter cable with soldered wires for direct connection to the screw terminals of the controller. ±0.5°C accuracy from -10°C to +85°C; 12 bits resolutions; Aluminum head for low thermal resistance; IP65 ingress protection; Very low current consumption; Each device has a unique 64-Bit serial number.

Catalogs

TST100
TST100
2 Pages
