Belt weigher MMI

Overview

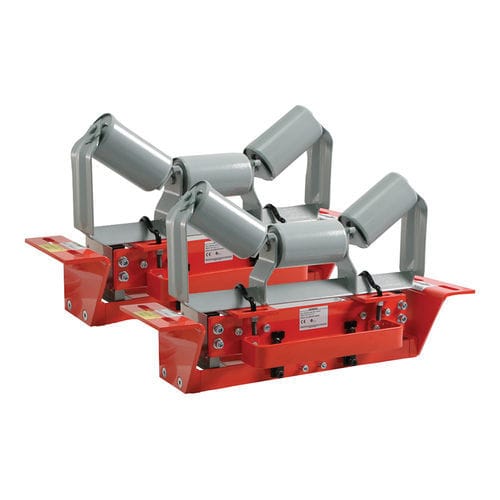

Milltronics MMI is a precision belt scale for heavy-duty applications featuring two or more roller bridges (roller bridges not included in scope of delivery). It is designed for continuous mass flow measurement and process control on conveyor belts in raw materials and processing industries.

Technical overview
Measurement: Weight measurement and control
Detection: Belt load detection
Technology: Belt scale with parallelogram load cells

Application
The MMI belt scale consists of two or more MSI weighing bridges installed in series to provide highly accurate continuous weighing. It is suitable for demanding applications such as mining, energy production, metallurgy, food and chemical processing. Typical materials measured include fertilisers, sand, grain, flour, coal and sugar.

Operational features
The MMI is used with Milltronics BW500 microprocessor electronics (integrator) for custody transfer and process control. A speed sensor provides the integrator with a signal proportional to belt speed. The scale installs between conveyor supports and is fixed with eight bolts; roller bridges are attached to the dynamic frame. The system has no moving parts, requiring minimal maintenance and only periodic calibration checks.

Benefits

• High accuracy and excellent reproducibility
• Parallelogram-shaped load cells for optimal vertical-force response
• Reliable measurement with light, irregular or sparsely loaded materials
• Compatible with high-speed conveyors
• Low operating and maintenance costs
• Certifications: NTEP, OIML, MID and Measurement Canada

Technical specifications

• Model: MMI (Milltronics MMI belt scale)
• Configuration: Two or more MSI weighing bridges installed in series
• Delivery scope: Roller bridges not included (attach to dynamic frame)
• Measured parameters: Instantaneous flow rate, totalised weight, load, belt speed
• Electronics: Compatible with Milltronics BW500 microprocessor integrator (custody transfer)
• Speed sensing: External sensor provides signal proportional to belt speed
• Load cells: Parallelogram-shaped load cells for rapid vertical response
• Installation: Mounted between conveyor belt supports, fixed with eight bolts
• Design: Weighing system without moving parts (minimal maintenance)
• Typical materials: Fertilisers, sand, grain, flour, coal, sugar
• Certifications: NTEP, OIML, MID, Measurement Canada
