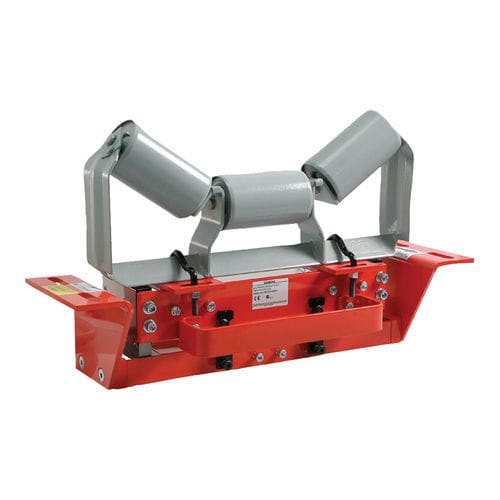

Belt weigher MSI

Product overview
The Milltronics MSI belt scale is a precision, continuous-weighing system designed for industrial process control and loading/unloading operations. The delivery scope includes the scale only; the roller bridge is not included.

Application
The MSI performs continuous in-line weighing across raw-material and processing industries. It is proven in demanding applications such as aggregate extraction, power generation, iron & steel production, food processing and chemical plants. The scale handles heterogeneous bulk materials (sand, flour, coal, sugar, etc.). Parallelogram-shaped load cells provide maximum reaction to vertical forces and immediate response to material loading, ensuring accurate and repeatable measurements even with irregular loads and high belt speeds. The MSI requires an external integrator (microprocessor electronics) and a speed sensor for belt velocity input.

Benefits

• Accurate and repeatable continuous weighing
• Parallelogram-shaped load cell design for optimal vertical force response
• Fast response to material loading—suitable for high-speed belts
• Simple mechanical installation between conveyor supports; roller bridge mounts to the dynamic frame
• Compliance: SABS, OIML, MID, Measurement Canada

Table (key attributes)
Measurement: Weight measurement and control
Detection: Detection
Technology: Belt

Technical features / specifications

• Model: MSI
• Type: Precision belt scale for continuous weighing
• Scope of delivery: Scale only (roller bridge not included)
• Load cell design: Parallelogram-shaped load cells for maximum vertical-force reaction
• Measured values: Instantaneous flow rate, total weight, load and belt speed
• Electronics (integrator) compatibility: Milltronics BW500, SIWAREX WT241, WP241 or FTC microprocessor electronics
• Speed sensing: External sensor provides belt speed signal to integrator
• Installation: Mounted between conveyor belt supports and secured with four screws; roller bridge fastens to dynamic frame
• Maintenance: No moving parts; minimal maintenance; periodic calibration checks recommended
• Suitable materials: Heterogeneous bulk solids (sand, flour, coal, sugar, etc.)
• Certifications: SABS, OIML, MID, Measurement Canada
