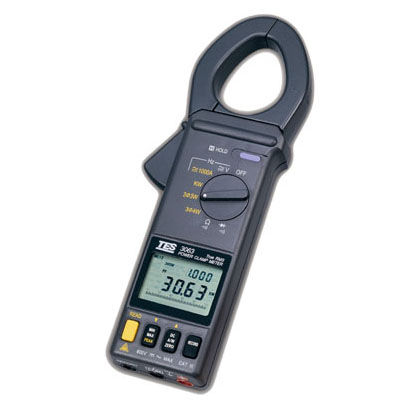

Digital clamp multimeter TES-3063
portable600 V1000 A

Digital clamp multimeter - TES-3063 - TES Electrical Electronic Corp. - portable / 600 V / 1000 A
Digital clamp multimeter - TES-3063 - TES Electrical Electronic Corp. - portable / 600 V / 1000 A
Add to favorites
Compare this product
Go to the TES Electrical Electronic Corp. website for more information

Characteristics

Display
digital
Form
portable
Max voltage
600 V
Max current
1000 A
Additional features
frequency, with power measurement, with data logger
Other characteristics
AC/DC, true RMS
Max DC voltage

600 V

Max AC voltage

600 V

Max DC current

1,000 A

Max AC current

1,000 A

Max resistance measure

10 kOhm

Max frequency measure

5 kHz

Max DC voltage resolution

0.1 V

Max AC voltage resolution

0.1 V

Max DC current resolution

0.1 A

Max AC current resolution

0.1 A

Max resistance resolution

1 Ohm

DC voltage precision

0.5 %

AC voltage precision

0.5 %

DC current precision

1.5 %

AC current precision

1.5 %

Resistance precision

1 %

Process temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Length

260 mm
(10.24 in)

Width

93 mm
(3.66 in)

Height

45 mm
(1.77 in)

Weight

450 g
(15.87 oz)

Description

Communication with PC 4000 Continuity Point Data Logger , 25 point manual Data Logger True Power / Apparent Power / Power Factor Measurement True RMS. V, A, W, cap, Ind, phase indicator 4 digits with dual Display LCD MIN / MAX Measurement Amp / Voltage Frequency Measurement PEAK HOLD Detector Dual display KW + PF , KVA + PF , V+A Dual display A + Hz , V + Hz
