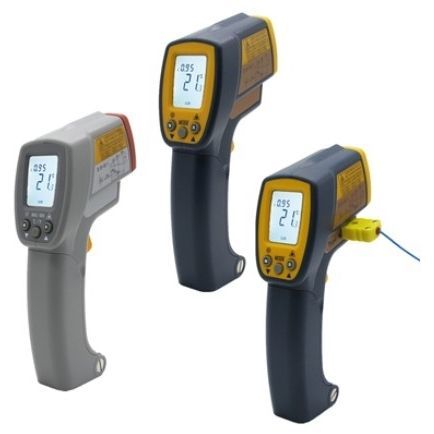

Infrared thermometer TES-132 seriesdual-scale°C°F
Add to favorites
Compare this product
Characteristics
- Technology
- infrared
- Display
- dual-scale
- Units of measurement
- °C, °F
- Aim
- with laser pointer
- Configuration
- hand-held
- Other characteristics
- data logging
- Temperature
Max.: 1,350 °C
(2,462 °F)Min.: -150 °C
(-238 °F)- Precision
2 %
- Resolution
0.1 °C
(32.18 °F)- Spectral range
Max.: 14 µm
Min.: 6 µm
Description
Laser targeting.
Maximum / Minimum function.
Data memory and read function.
Daul thermometer and Dual display.
Emissivity adjustable.
Audible and visible alarm.
INFRARED THERMOMETER
Field of View
12:1 optics ratio with a 1” min target
Emissivity
0.17 ~ 1.00 , (1326S : fixed 0.95)
Sighting
Laser marker < 1mw
GENERAL SPECIFICATIONS
Data memory capacity
50 sets (Direct reading from LCD display) (1326S/1327)
99 sets (Direct reading from LCD display) (1327K)
Auto power off
approx. 15 sec
Battery Life
Approx. 100 hours (laser pointer and backlight aren’t on use) (Alkaline)
Power Source
One 9V cell (ANSI/NEDA-1604A, IEC-6LR61)
Operating / Storage Condition
0°C ~ 50°C (32°F ~ 122°F) below 80%RH
-10°C ~ 60°C (14°F ~ 140°F) below 70%RH
Dimensions
172mm× 118mm × 46mm
Weight
220g
Accessories
Instruction manual, Battery
