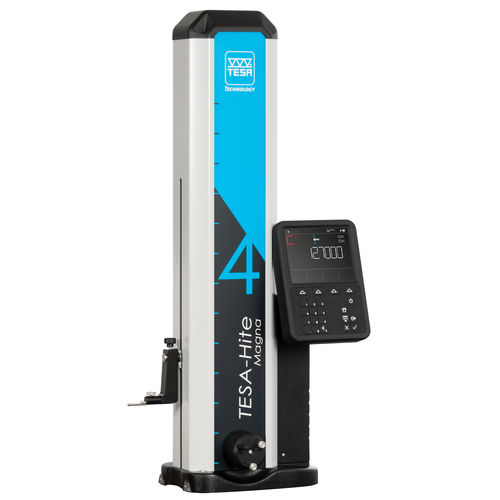

Digital display height gauge HITE MAGNA series

high-precision

Equipped with the Magna-µ-System measuring system, these 1D manual height gauges are particularly suitable for harsh conditions. Thanks to their robustness and their high protection level, they are very robust and specifically designed for rough production environments where a high penetration of dust particles and the frequent splashing of liquids (water, oil etc.) are common. • PANEL - Protected against the penetration of liquids or dust (IP65) - Big colour screen for better reading in dimly lit surroundings - Black display background for excellent contrast - Large numbers displayed on the screen (21 mm) for optimal readability - Keyboard with few buttons for easy learning without confusion • AUTONOMY - Long battery life (60h) to avoid too frequent recharging • MEASURE - Philosophy of use similar to tablets or smartphones - Quick access to the first measurement from start up (<4s) for a significant time saving - Magnetic measuring system (patented) ensuring functioning in the extreme conditions of the workshop - QUICKCENTER DYNAMIC technology integrated to efficiently determine the culmination points - Context-based online help to avoid incorrect use and bad results - The interface can be customized according to the user's wishes • SCS CALIBRATION CERTIFICATE - Free SCS certificate provided to avoid additional costs for re-calibration at the initial purchase Measuring force 1,5 ± 0,5 N Units mm / in Standard Factory standard Resolution 0,001 / 0,005 / 0,01 mm 0.0001 / 0.0002 / 0.001 in Zero Fixed Coefficient of linear expansion (12 ± 1,5) x 10-6 K-1 Material Cast iron base Degree of protection Measuring system: IP55
