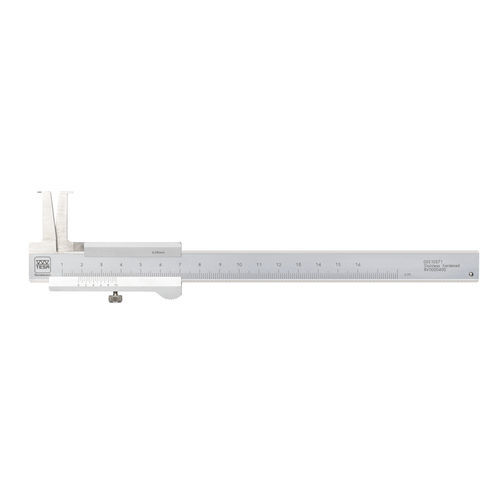

Vernier caliper 005103 series specialstainless steelchrome
Add to favorites
Compare this product
Characteristics
- Type
- Vernier, special
- Material
- stainless steel, chrome, satin
- Other characteristics
- groove gauge
- Measuring capacity
Max.: 300 mm
(11.8 in)Min.: 10 mm
(0.4 in)
Description
• INSTRUMENT
- Perfect operation of the slider for a silky-smooth operation
- Mains scale slightly set back for protection against wear
Standard - Factory standard
Max. perm. errors - L = length of the jaws in mm
For 0,02 resolution:
40 < L ≤ 60: ± 80 µm
60 < L ≤ 80: ± 100 µm
80 < L ≤ 100: ± 120 µm
For resolution 0,05:
0 < L ≤ 40: ± 50 µm
Particular characteristic(s) - Locking screw
Included in delivery - Measurement report
Declaration of conformity
