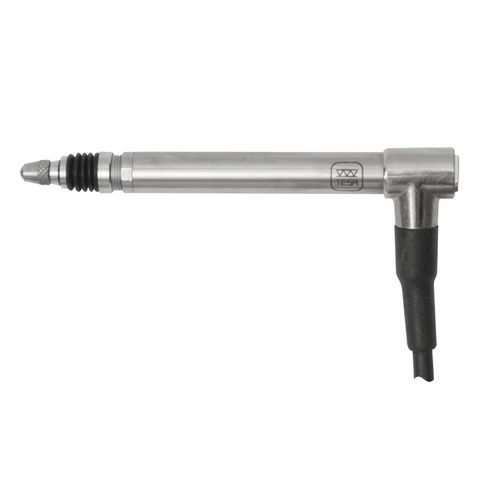

Measurement touch probe GT2 serieshigh-precision
Add to favorites
Compare this product
Characteristics
- Type
- measurement
- Other characteristics
- high-precision
- Measuring range
0.2 mm
(0.0079 in)
Description
Standard - DIN 32876
Coefficient of linear expansion - 0,15 µm/°C
Dimensions - Fixing shank: Ø 8 mm
Insert thread: M2,5
Ball insert Ø 3 mm
Cable: 2 m
Connector: 5p DIN45322
Degree of protection - IP65
Weight - Mobile weight: 6 g
Power supply - Supply frequency: 13 kHz (± 5 %)
Max. mechanical frequency: 60 Hz
Remark(s) - CAD files available on request
Downloadable data sheets on www.tesatechnology.com
Included in delivery - Measurement report
Declaration of conformity
