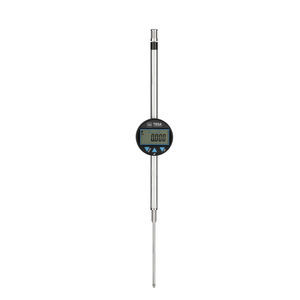

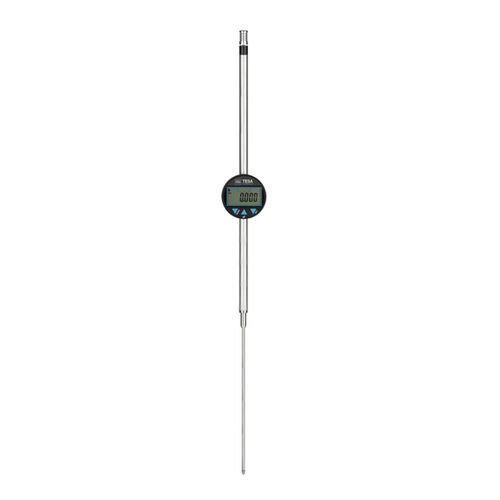

Dial comparator 01930313digital
Add to favorites
Compare this product
Characteristics
- Options
- dial, digital
- Measuring range
150 mm
(5.9055 in)- Resolution
0.001 mm
(0.00004 in)
Description
- Switching of the counting direction
- Automatic sleep mode
- RS232 data output
- PRESET mode
- 2 storable references
- MAX, MIN, MAX-MIN (TIR)
- Change of resolution
- Multiplication factor
- Locking of the keys
- Storage of the measured value
- Reset of the value
- Button for recall of PRESET value
- Setting of tolerances
SPECIFICATIONS
Units - mm / in
Standard - Dimensions: EN ISO 463
Performances: factory standard
Material - Casing: metallic
Mounting shank: stainless steel
Plunger: stainless steel
Dimensions - Insert thread: M2,5
Mounting shank: Ø 8 mm
Included in delivery - Dial gauge with mounted ball insert Ø 3 mm
Measurement report
Quickstart guide
