Double-sided adhesive tape 62510

mountingPE foampaper liner

Product description

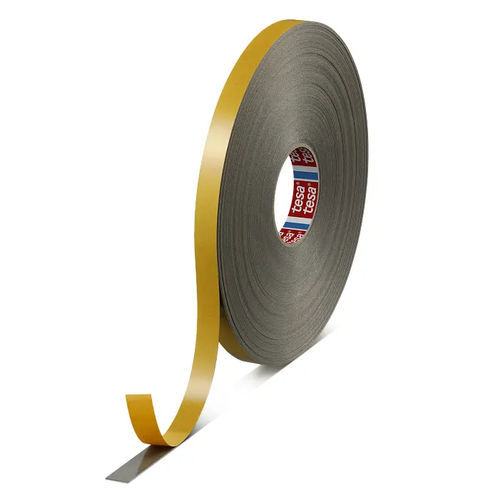

tesa® 62510 is a double-sided PE foam tape designed for mounting applications. It comprises a highly conformable PE foam backing and a tackified acrylic adhesive, offering reliable bonding performance and suitability for outdoor use.

Product features

• High ultimate adhesion level for consistent bonding
• Skin contact certification according to ISO 10993-5 and ISO 10993-10
• Fully outdoor suitable: UV, water and ageing resistant
• Conformable PE foam core with high inner strength
• Suitable for automatic and manual module assembly
• Easy solar module assembly due to a high foam compression rate

Application fields

• General mounting applications
• Mounting of trims and profiles
• Solar module frames

Product construction
Backing material: PE foam
Colour: black/white
Total thickness: 1,000 µm
Type of adhesive: tackified acrylic

Properties / Performance values
Elongation at break: 180 %
Tensile strength: 10 N/cm
Humidity resistance: very good
Static shear resistance at 40°C: good
Tack: good
Static shear resistance at 70°C: very good
Temperature resistance (long term): 80 °C
Ageing resistance (UV): very good
Softener resistance: medium
Static shear resistance at 23°C: good
Temperature resistance (short term): 80 °C

Adhesion to values
Adhesion to ABS (initial): 8 N/cm
Adhesion to ABS (after 14 days): 13.5 N/cm
Adhesion to Aluminium (initial): 8 N/cm
Adhesion to Aluminium (after 14 days): 13.5 N/cm
Adhesion to PC (initial): 8 N/cm
Adhesion to PC (after 14 days): 13.5 N/cm
Adhesion to PE (initial): 0.9 N/cm
Adhesion to PE (after 14 days): 0.9 N/cm
Adhesion to PET (initial): 6 N/cm
Adhesion to PET (after 14 days): 13.5 N/cm
Adhesion to PP (initial): 1.2 N/cm
Adhesion to PP (after 14 days): 1.2 N/cm
Adhesion to PS (initial): 8 N/cm
Adhesion to PS (after 14 days): 8 N/cm
Adhesion to PVC (initial): 13.5 N/cm
Adhesion to PVC (after 14 days): 13.5 N/cm
Adhesion to Steel (initial): 13.5 N/cm
Adhesion to Steel (after 14 days): 13.5 N/cm

Additional info

• Liner variants: PV0 brown glassine paper (71 µm)
• PV13 transparent PET film (50 µm)
• PV15 blue PE film (100 µm)

Peel adhesion: immediately: foam splitting on steel; after 14 days: foam splitting on steel, ABS, Aluminium, PC, PET, PS, PVC

tesa® 62510 is recognized by UL as photovoltaic polymeric material (QIHE2).
tesa® 62510 has been tested by TÜV Rheinland; tests confirm long-term adhesion performance after IEC 61215 climate tests and resistance up to 85 °C. Temperature resistance (short/long term) has been evaluated according to tesa test method under static load.
