Double-sided adhesive tape 62505

mountingPE foampaper liner

Product description

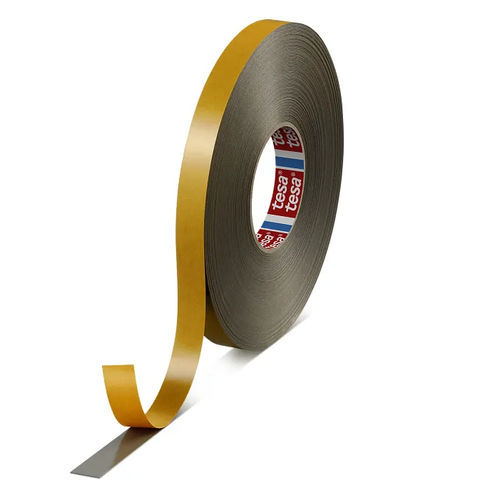

tesa® 62505 is a double-sided PE foam tape for lightweight mounting applications. It comprises a highly conformable PE foam backing and a tackified acrylic adhesive.

Product features

• Thin foam backing for an invisible design gap
• High ultimate adhesion for reliable bonding performance
• Soft, conformable foam adapting to structured surfaces
• Fully suitable for outdoor use: UV, water and ageing resistant
• Suitable for manual and automatic application processes

Application fields
Mounting of decorative trims and profiles; general lightweight assembly and fixing tasks.

Product construction
Backing material: PE foam
Colour: black/white
Total thickness: 500 µm
Type of adhesive: tackified acrylic
Type of liner: glassine (PV0) or PP film (PV6)

Properties / Performance Values
Elongation at break: 150 %
Tensile strength: 5 N/cm
Static shear resistance at 23°C: good
Tack: good
Softener resistance: medium
Temperature resistance (short term): 80 °C
Temperature resistance (long term): 80 °C
Ageing resistance (UV): very good
Humidity resistance: very good
Static shear resistance at 40°C: good

Adhesion to Values
Adhesion to ABS (initial): 3 N/cm
Adhesion to ABS (after 14 days): 9.5 N/cm
Adhesion to Aluminium (initial): 5 N/cm
Adhesion to Aluminium (after 14 days): 9.5 N/cm
Adhesion to PC (initial): 5 N/cm
Adhesion to PC (after 14 days): 9.5 N/cm
Adhesion to PE (initial): 0.9 N/cm
Adhesion to PE (after 14 days): 1.2 N/cm
Adhesion to PET (initial): 3 N/cm
Adhesion to PET (after 14 days): 9.5 N/cm
Adhesion to PP (initial): 0.9 N/cm
Adhesion to PP (after 14 days): 1.2 N/cm
Adhesion to PVC (initial): 2 N/cm
Adhesion to PVC (after 14 days): 9.5 N/cm
Adhesion to Steel (initial): 8.5 N/cm
Adhesion to Steel (after 14 days): 9.5 N/cm

Additional info

• Liner variants: PV0 brown glassine paper (71 µm)
• PV6 red transparent PP film (80 µm)

Caractéristiques / spécifications techniques

• Brand: tesa
• Model: tesa® 62505
• Backing material: PE foam
• Total thickness: 500 µm
• Colour options: black / white
• Adhesive: tackified acrylic
• Liner: glassine (PV0) or PP film (PV6)
• Elongation at break: 150 %
• Tensile strength: 5 N/cm
• Temperature resistance (short/long term): 80 °C
• Ageing (UV) resistance: very good
• Humidity resistance: very good
• Suitable for outdoor use and for manual/automatic application
• Typical adhesion after 14 days on many substrates: up to 9.5 N/cm
