Continuous flight auger (CFA) drilling rig CF3 S PLUS
geotechnicaldeep-stabilizationpiling

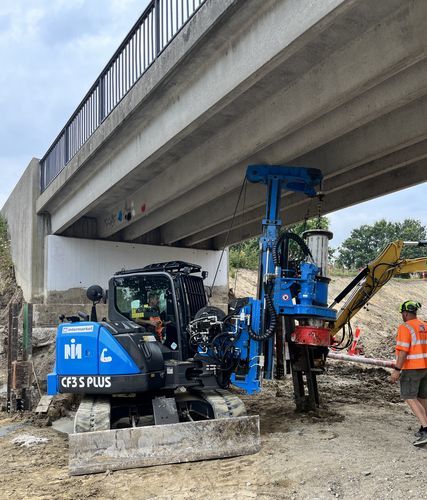

Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 2
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 3
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 4
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 5
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 6
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 7
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 8
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 9
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 10
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 11
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 12
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 13
Continuous flight auger (CFA) drilling rig - CF3 S PLUS - TESCAR Srl - geotechnical / deep-stabilization / piling - image - 14
Add to favorites
Compare this product

Characteristics

Drilling type
continuous flight auger (CFA)
Function
geotechnical, deep-stabilization
Applications
piling, deep
Mobility
crawler
Drilling unit
rotary
Other characteristics
hydraulic, diesel engine
Sector
for civil engineering, construction
Drilling diameter

Min.: 0 mm
(0 in)

Max.: 1,000 mm
(39 in)

Drilling depth

Min.: 0 m
(0'00" )

Max.: 23 m
(75'05" )

Machine weight

13 t
(14.3 us ton)

Motor power

50.7 kW
(68.93 hp)

Description

Product overview
CF3 S PLUS is a rotary drilling rig designed for installation of bored piles using a Kelly bar. The unit is intended for foundation works in civil engineering and construction projects where deep, large-diameter piles are required.

Application / Category
Bored piles with Kelly bar; foundation drilling for buildings, bridges and infrastructure projects. Suitable for onsite piling operations requiring controlled torque and deep penetration.

Technical data (table)
TORQUE: 45 kNm
ENGINE POWER: 50.7 kW
MAX DEPTH: 23 m
MAX DIAMETER: 1000 mm
TOTAL WEIGHT: 13 t

Resources
  • Technical data PDF available (downloadable from product page)
  • Product video available (hosted on YouTube)
  • Image gallery available

Technical specifications
  • Torque: 45 kNm
  • Engine power: 50.7 kW
  • Maximum depth: 23 m
  • Maximum diameter: 1000 mm
  • Total weight: 13 t
