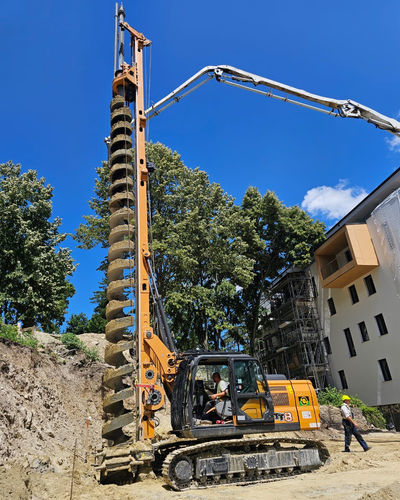

Continuous flight auger (CFA) drilling rig TT8 CFA

geotechnicaldeep-stabilizationpiling

Overview
TT8 CFA is a continuous flight auger (CFA) piling rig for cast-in-place augered piles used in foundation and civil engineering works. It is designed to deliver high torque for deep augering operations and to handle pile diameters up to 800 mm.

Technical data (summary)

• Torque: 80 kNm
• Engine power: 80 kW
• Maximum depth: 12–16 m
• Maximum diameter: 800 mm
• Total weight: 25 t

Applications

• Cast-in-place continuous flight auger (CFA) piles
• Foundations for buildings, bridges and other infrastructure
• Urban and constrained-site piling where vibration minimization is required

Operational notes
Requires an appropriate carrier and trained operators. Verify lifting, transport and site access requirements given the total weight of 25 t. Matching of auger extensions and concrete delivery systems must follow project specifications.

Options & accessories

• Auger extensions and interchangeable auger diameters up to 800 mm
• Monitoring and control systems for torque and depth
• Concrete pumping interfaces and pouring equipment

Contact / ordering
For detailed configurations, mounting options and spare parts, contact the manufacturer or your local dealer with project specifications.
