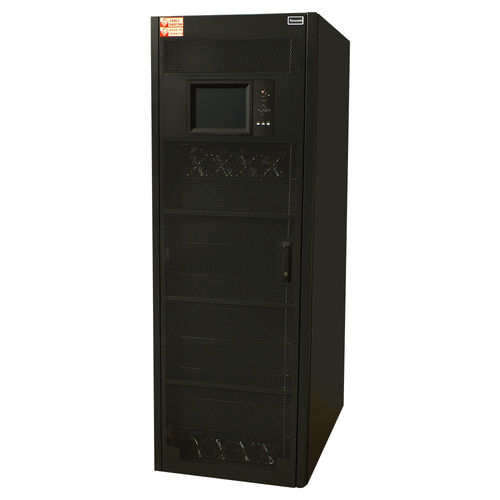

On-line uninterruptible power supply MTI300

parallelACthree-phase

The MTI300 Modular UPS provides the most compact footprint of less than 2m² with maximum capacity of 900kVA. MTI300/30kVA is considered to be the best power protection solution for large data centers, as well as for sensitive electronics. The MTI600 Modular UPS provides power capacity of 600kVA in one single system. With the most advanced full DSP control technology, health management system and smart monitoring system, it has been proven to be the best choice for large data centers, as well as for sensitive electronics. GENERAL SPECIFICATIONS 3 Level topology Modular design with N+X redundancy Online hot swapping, by-pass and power module feature Optional dual input High power density with footprints of less than 2m² up to 900kVA in parallel, 30kVA power module with only 3U height High power density of 600kVA in one single cabinet, 30kVA power module with only 3U height Green and energy saving: AC/AC efficiency > 95%, input power factor > 0.99 while input THDi < 3% Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size Excellent input performances for complete compatibility with input PF of 99% and wide range of voltage Self-Aging mode for full load test with less than 10% of the total power capacity needed Smart Sleeping mode for energy saving and prolong the life time of the system Optimized battery management, intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery Battery cold start, UPS can be powered on from the battery without utility
