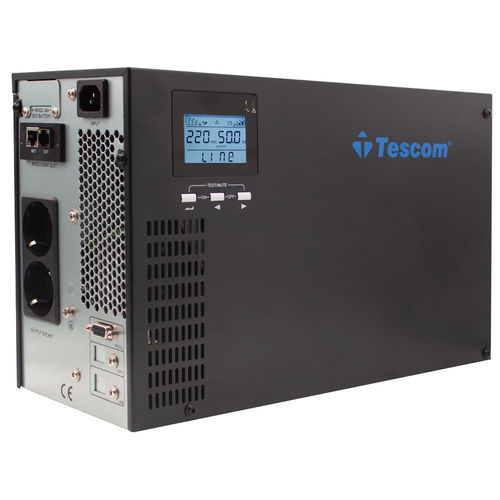

On-line uninterruptible power supply CL 101

ACdata centerwith LCD display

CL 101 (1kVA) Online UPS is an uninterruptible power supply designed with true double conversion technology and DSP (Digital signal processors) controlled processor. Thanks to True Double Conversion technology, UPS works independent from mains voltage and frequency. By converting the energy AC to DC energy, keeps your batteries constant charge. After converting it back to AC energy and applies filtration process before supply your loads. Efficiency with Active Power Factor Correction (APFC) feature and flexibility with wide voltage/frequency range is avaliable. It provides high-level protection for your data center, control systems and other critical loads. GENERAL SPECIFICATIONS DSP (Digital signal processors) Active power factor correction Ouput PF: 0.9 Wide voltage and frequency range Active Harmonic Correction <3% Automatic frequency detection 50/60Hz frequency range Cold start Rear panel ventilated design and variable fan speed Effective software and hardware protection Fast and durable battery charge, 90% in 4 hours Adjustable delay start when mains power is restored The ability to charge the battery even when it is in the off position. Uninterruptible transfer Load sensitive intelligent fan control Easy fault diagnosis with smart alarm warning system and diagnostic coding Advanced battery management Configuring settings via LCD screen Multi communication: RS232, (standard), USB, RS485/SNMP/Dry contact (optional)
