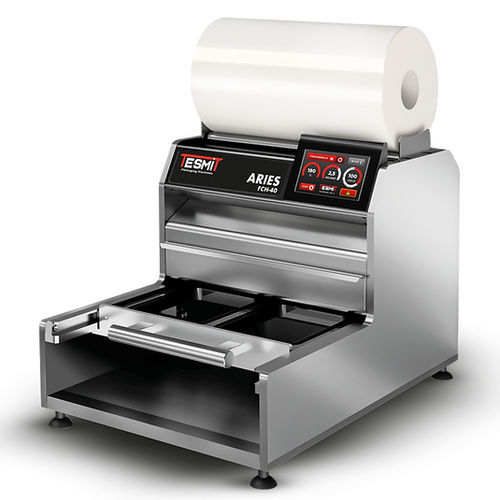

Manual tray sealer ARIES FCH-40

linear arrayfor the food industry

Pneumatic manual Tray sealers machine. With die cutting mold. Our ARIES Tray sealers machine is ideal for packaging semi-processed or processed foods with sauces and liquids. Thanks to sealing and heat sealing, it allows the transport of the packaged product without losses and increasing the expiry date. The sealing process is semi-automatic, with customized die-cutting of the tray profile. The ARIES sealer was designed and built for intense and continuous use. Perfect heat sealing Top seal is the basic function of a heat sealer, it consists in making the film adhere to the tray using heat Easy opening Welding technology with Easy Peel film in order to make the opening process always easy and intuitive. Perfect tray cut The extreme care in the construction of the mold allows a perfect cutting of the excess film waste, guaranteeing a high quality product. Maximum tray size Maximum area: 400 x 280 x H120 mm Example: • No. 1 GN 1/2 • Nr. 2 GN 1/4 Data sheet: • Machine structure in ALUMINUM / STAINLESS STEEL • Maximum film reel length: 430 mm • Maximum tray size: 400x280 h120 mm • Automatic film cutting, die-cutting blades • Molds for interchangeable trays • Power supply: 230 V 50 Hz / 3 A • Machine dimensions: L 500 x H 620 x D 700 mm - 80.00 Kg
